Features
Step width: 600 mmMaximum platform height: 1100 m
Medium designation (80)
Mobile platform, 45° inclination pf. 5m - lm. 600mm
Reference
05905005
Barcode
3178740071431
Brand
Tubesca
Standards
EN ISO 14122
Guarantee
5 year
Number of rungs / steps
6
Maximum access height
3100 m
Maximum platform height
1100 m
Main material
Aluminium
Overall product height
2200 m
Overall width (without stab)
1362 m
Upright section
120
Weight
72,50 kg
Maximum distributed load
200 kg/m²
Type of floor
Flat surface
Made in france
Made in France
Details

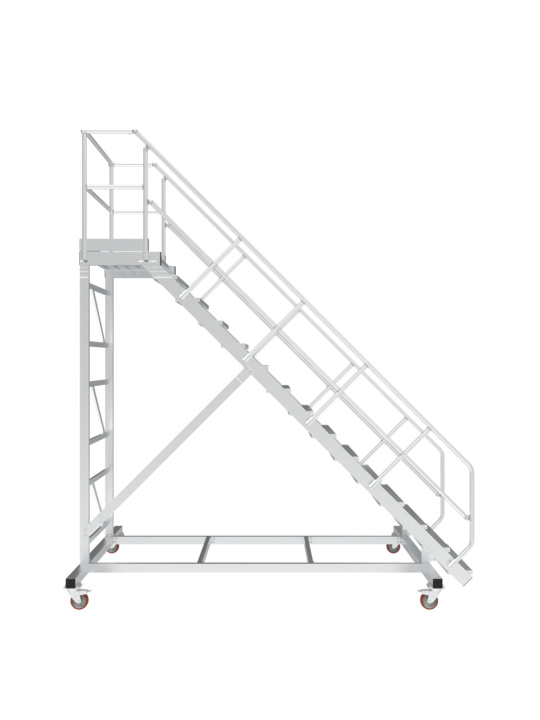

The Modul Access mobile platform is available in three widths and two tilt angles. It is sturdy and designed with torsion-resistant steps. Its swivel wheels with brakes allow excellent mobility and safety in use.- Torsion-resistant steps bolted into the grooves of the stringers
- Optional front or side exit: please consult us.
- Platform length as standard: 725 mm.
- 50 mm to 3000 mm extensions can be added.
- Two handrails as standard.
- Integrated “knee protector” mid-brace.
- Platform with guardrail on three sides 1100 mm high with mid-braces and toe boards.
- The diameter and positioning of the wheels are adapted to the height of the product. Diameters used: Ø125 mm and Ø150 mm.
- Product delivered pre-assembled in sub-assemblies (stairs, platform, guardrail, supports, etc.).
- Instruction manual provided.
- Optional disengageable mobile system available. Please consult us.
- Optional gate(s) to create a work platform (protection on all four sides).

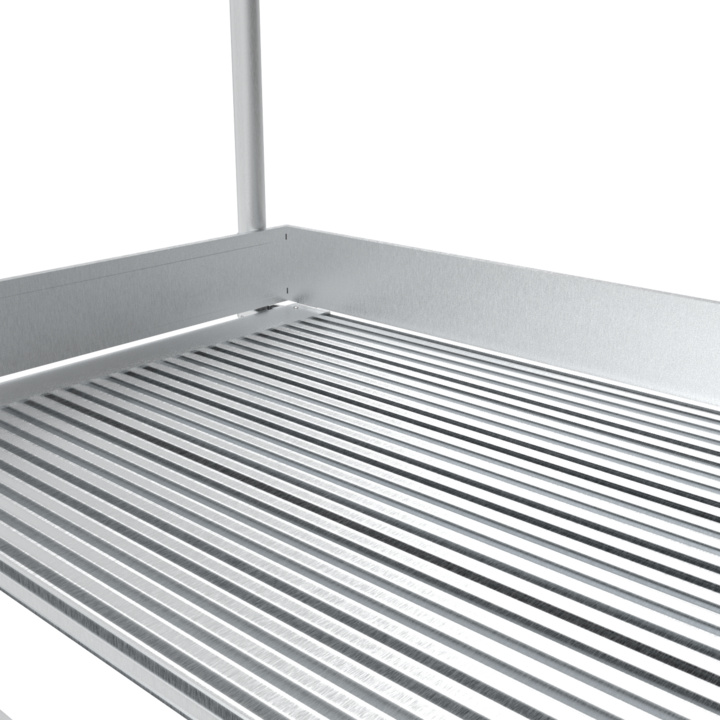

Anti-slip ribbed platform

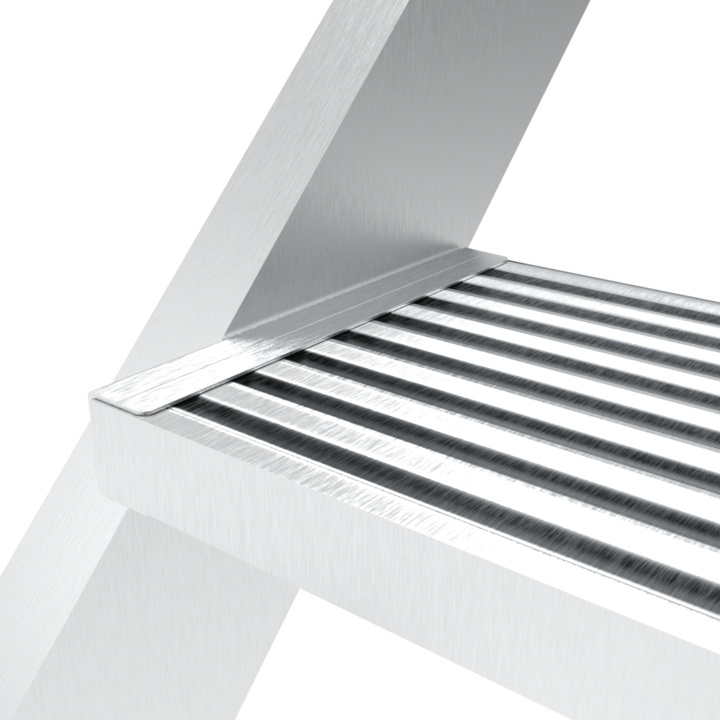

Anti-slip ribbed steps 225mm

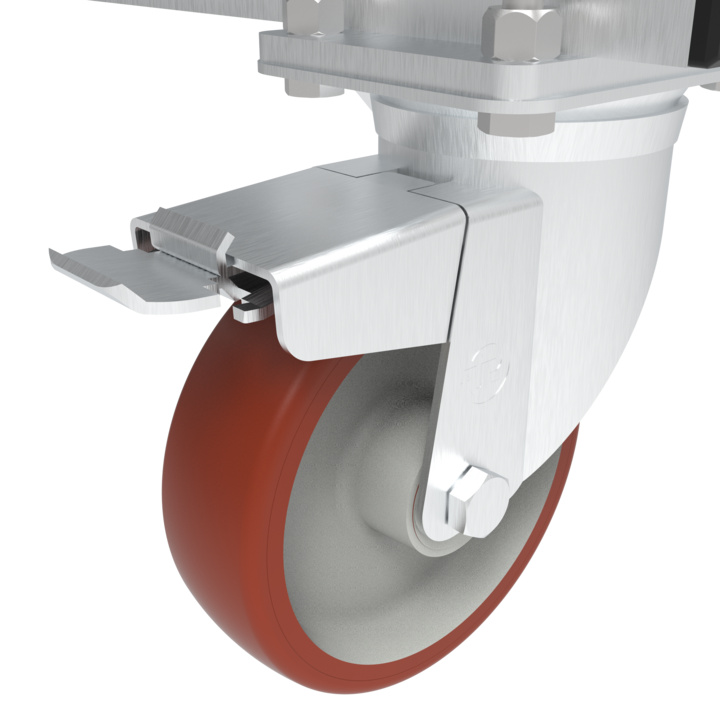

Load-bearing wheels with ultra-resistant brakes
Download the documentation
Mobile platform, 45° inclination pf. 5m - lm. 600mm
Price on request
