Features
Step width: 600 mmMaximum platform height: 700 m
Medium designation (80)

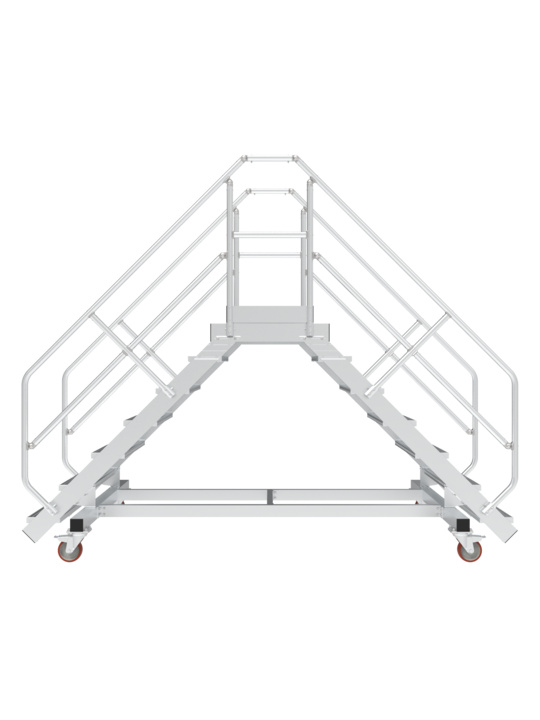

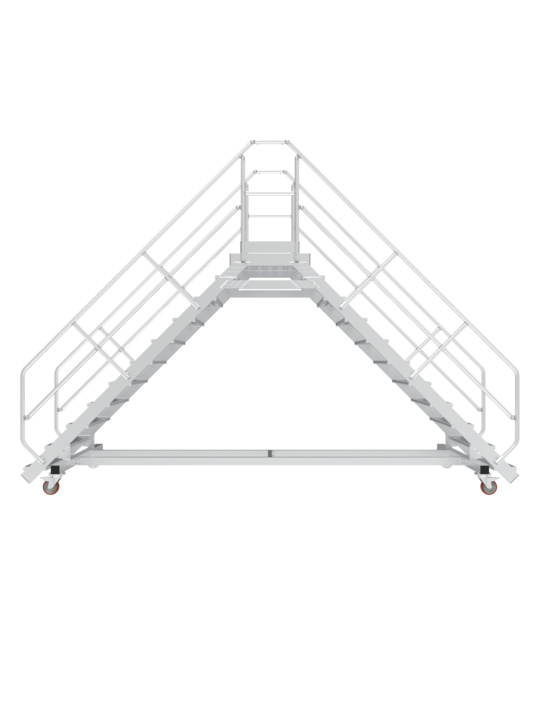

Mobile walkway, 45° inclination pf. 3m - lm. 600mm
Reference
05909003
Barcode
3178740072650
Brand
Tubesca
Standards
EN ISO 14122
Guarantee
5 year
Number of rungs / steps
4
Maximum access height
2700 m
Maximum platform height
700 m
Main material
Aluminium
Overall product height
1800 m
Overall width (without stab)
823 m
Upright section
120
Weight
63,80 kg
Maximum distributed load
200 kg/m²
Type of floor
Flat surface
Made in france
Made in France
Details
- Torsion-resistant steps bolted into the grooves of the stringers
- Platform length as standard: 775 mm. 50 mm to 3000 mm extensions can be added.
- Two handrails as standard.
- Integrated “knee protector” mid-brace for 45° angles.
- Platform with guardrail on 2 sides 1100 mm high with mid-braces and toe boards.
- Two braces with swivel wheels and brake.
- The diameter and positioning of the wheels are adapted to the height of the product. Diameters used: Ø125 mm and Ø150 mm.
- Support beam under the platform. Optional disengageable mobile system available. Please consult us.
- Product delivered pre-assembled in sub-assemblies (stairs, platform, guardrail, supports, etc.).
- Instruction manual provided.
- Optional gate(s) to create a work platform (protection on all four sides).

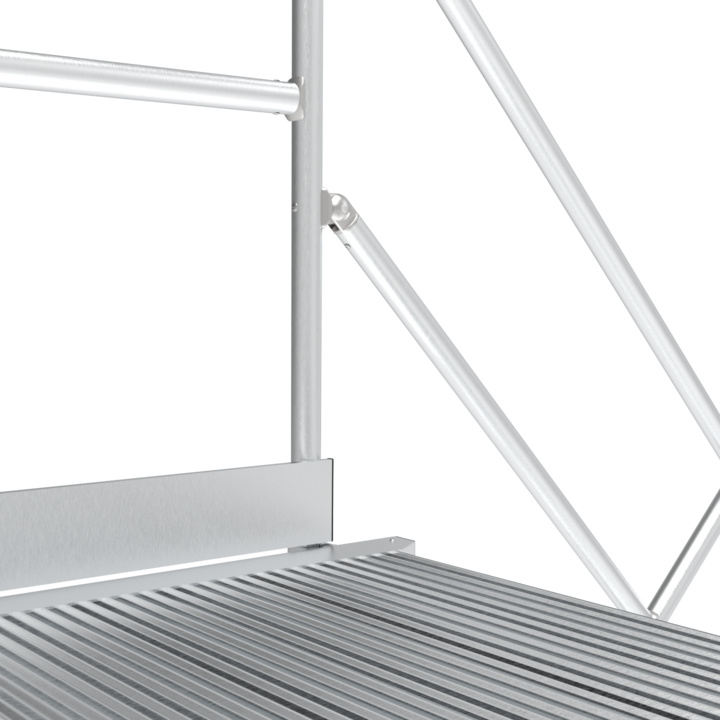

Anti-slip ribbed platform

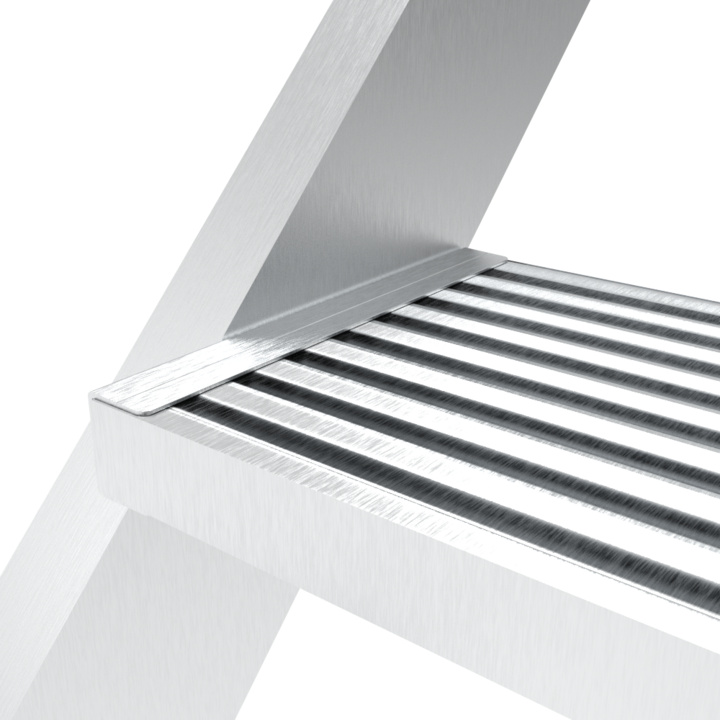

Anti-slip ribbed steps 225mm

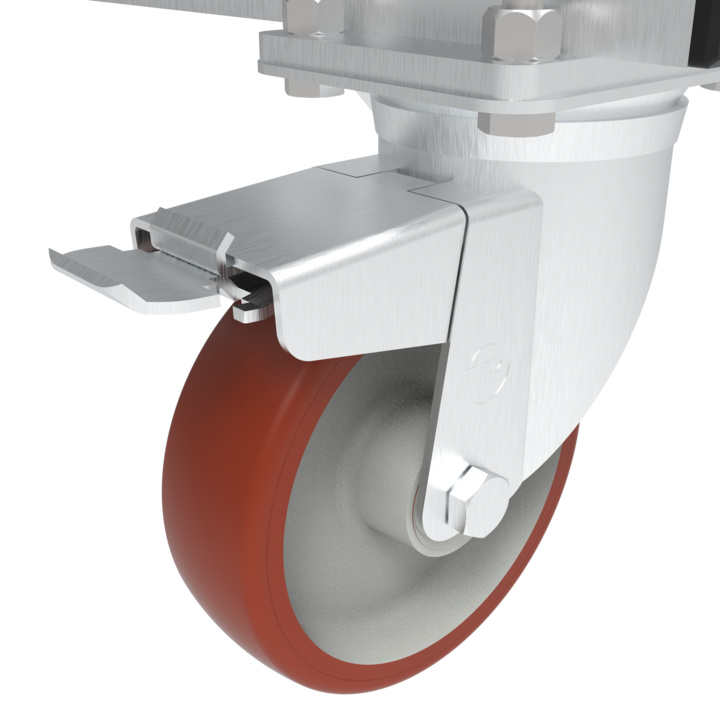

Load-bearing wheels with ultra-resistant brakes
Download the documentation
Mobile walkway, 45° inclination pf. 3m - lm. 600mm
Price on request
