Features
Step width: 600 mmMaximum platform height: 1100 m
Medium designation (80)
Stairway with ramp, 45° inclination pf. 5m - lm. 600mm
Reference
05901005
Barcode
3178740070137
Brand
Tubesca
Standards
EN 1090, EN ISO 14122
Guarantee
5 year
Number of rungs / steps
6
Maximum access height
3100 m
Maximum platform height
1100 m
Main material
Aluminium
Overall product height
2044 m
Overall width (without stab)
751 m
Upright section
120
Weight
28,50 kg
Maximum distributed load
200 kg/m²
Type of floor
Flat surface
Made in france
Made in France
Details

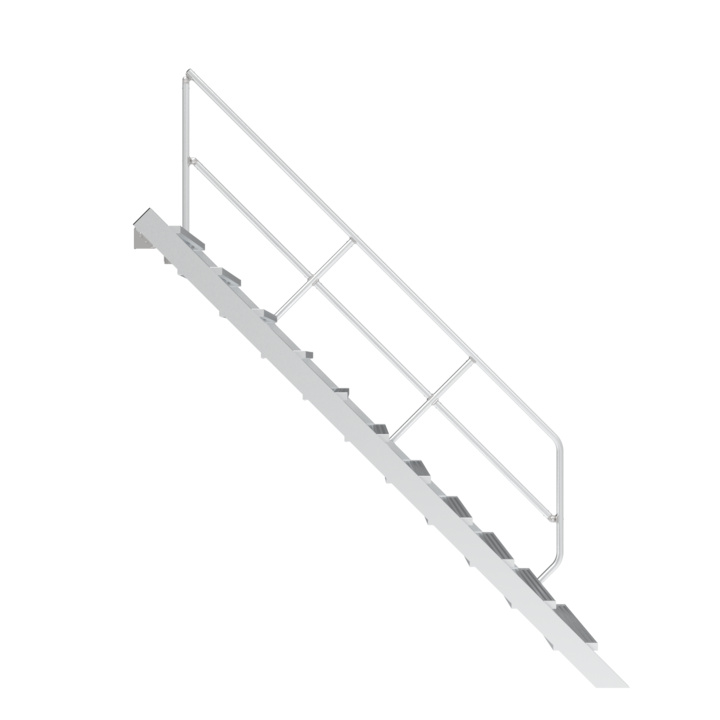

The Modul Access industrial staircase with one handrail is available in three widths and two tilt angles with an optional second handrail. It is sturdy and designed with torsion-resistant steps.- Torsion-resistant steps bolted into the grooves of the stringers.
- The stairs are attached by square brackets at each end.
- One handrail as standard, can be mounted either on the right or left thanks to its design with grooved profiles. Integrated “knee protector” mid-brace.
- Product delivered pre-assembled in sub-assemblies (stairs, platform, guardrail, supports, etc.)
- Instruction manual provided.
- Screws to fasten to floor or wall not provided. Fasteners must be suitable for the substrate.
- Screw diameters to be provided: Ø12 mm for staircase foot, Ø8 mm for fastening to wall.

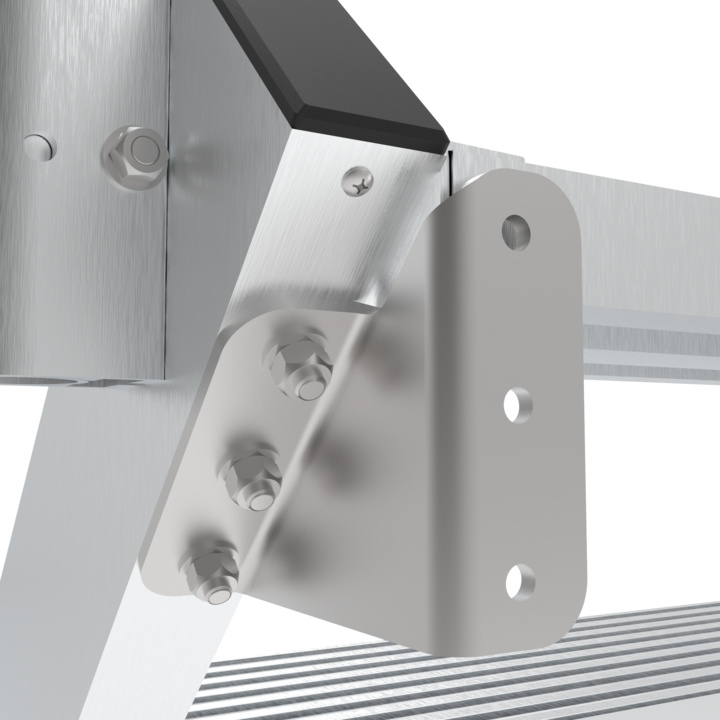

Upper fixing brackets

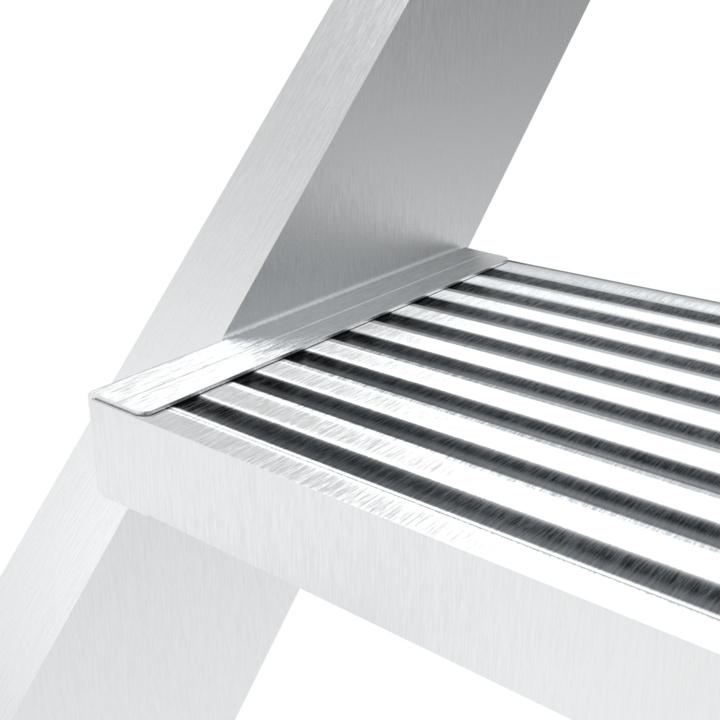

Anti-slip ribbed steps 225mm

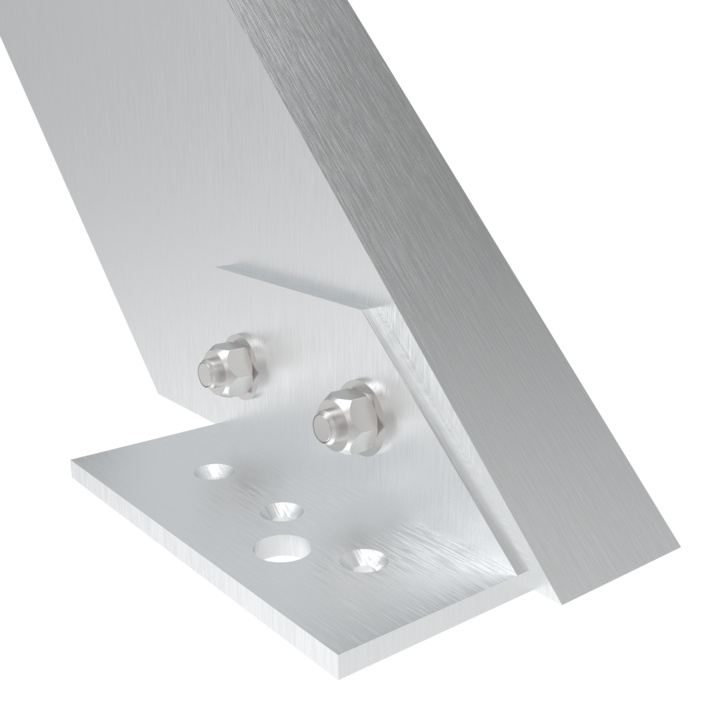

Floor fixing brackets
