Features
Step width: 600 mmMaximum platform height: 830 m
Medium designation (80)

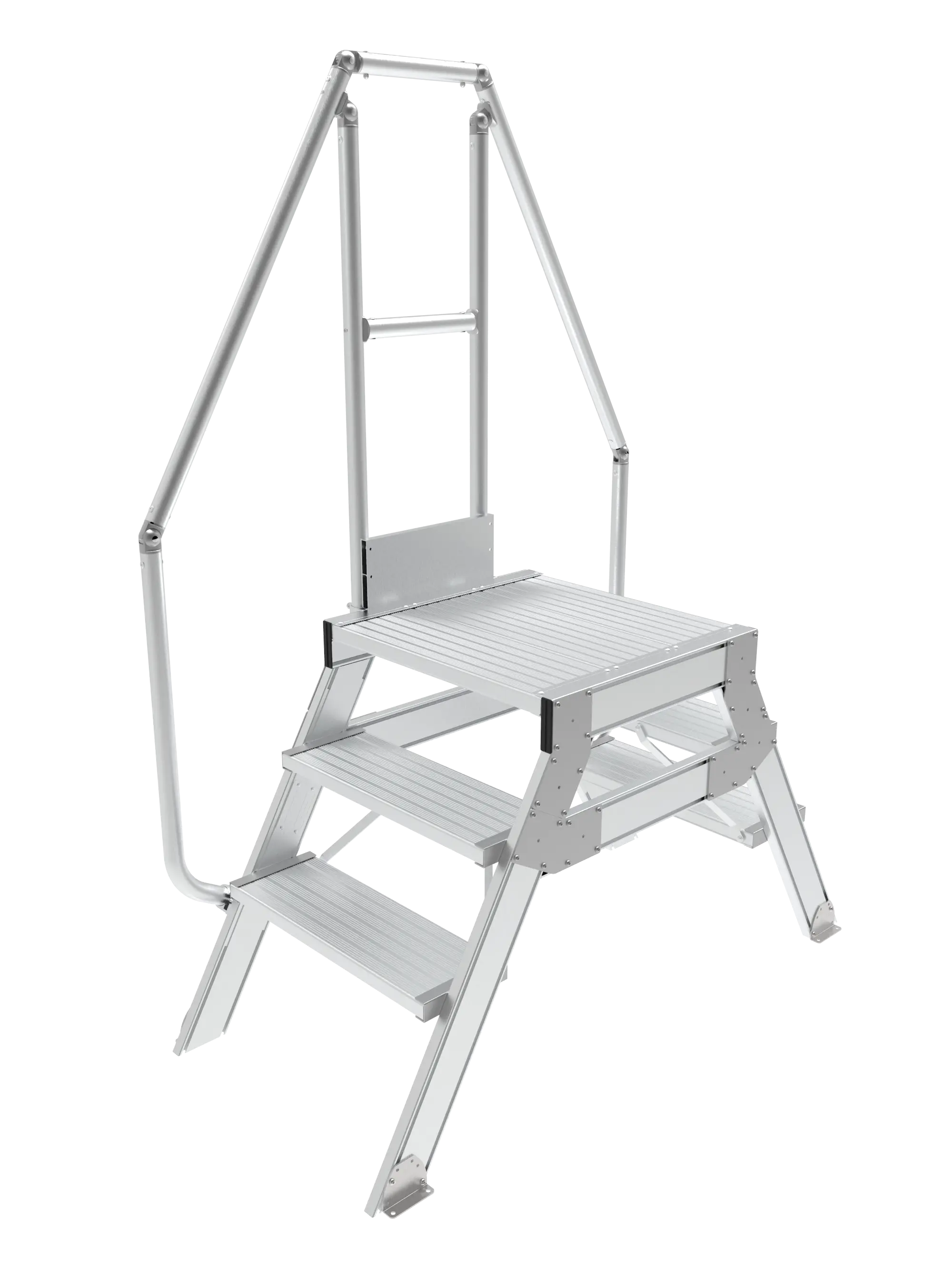

Fixed walkway, 60° inclination pf. 3m - lm. 600mm
Reference
05908003
Barcode
3178740071899
Brand
Tubesca
Standards
EN 1090, EN ISO 14122
Guarantee
5 year
Number of rungs / steps
4
Maximum access height
2830 m
Maximum platform height
830 m
Main material
Aluminium
Overall product height
1930 m
Overall width (without stab)
751 m
Upright section
120
Weight
35,70 kg
Maximum distributed load
200 kg/m²
Type of floor
Flat surface
Made in france
Made in France
Details
- Torsion-resistant steps bolted into the grooves of the stringers.
- Fastening brackets at the base
- Standard platform length: 780 mm. 50 mm to 3000 mm extensions can be added.
- One handrail delivered as standard, to be mounted either on the right or left, as desired.
- Platform with guardrail on one side 1100 mm high with mid-braces and toe boards.
- Product delivered pre-assembled in sub-assemblies (stairs, platform, guardrail, supports, etc.)
- Instruction manual provided.
- Screws to fasten to floor or wall not provided. Fasteners must be suitable for the substrate.
- Screw diameters to be provided: Ø12 mm for staircase foot, Ø8 mm for fastening to wall.

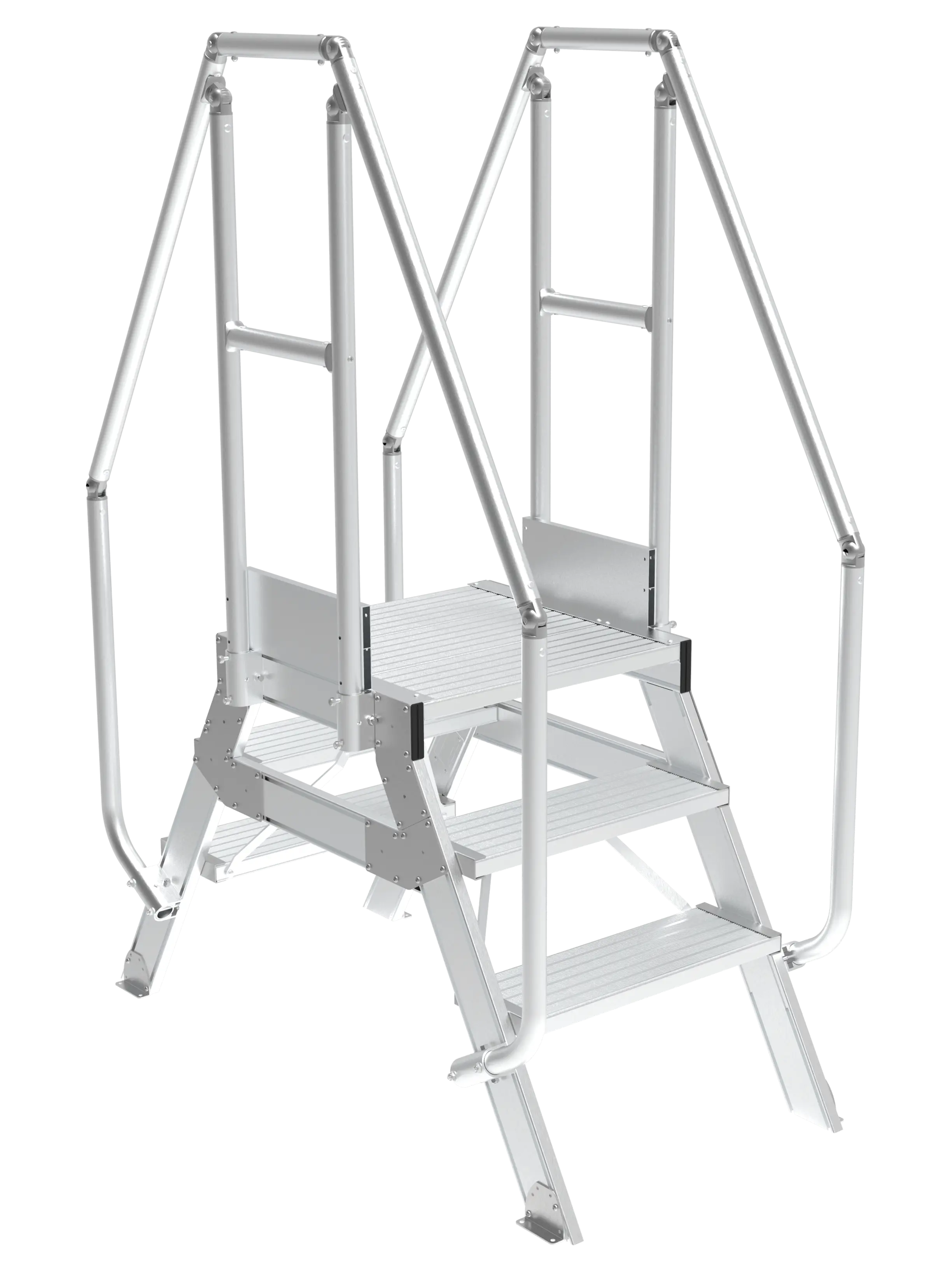

- Optional second handrail with guardrail.
- Optional gate.

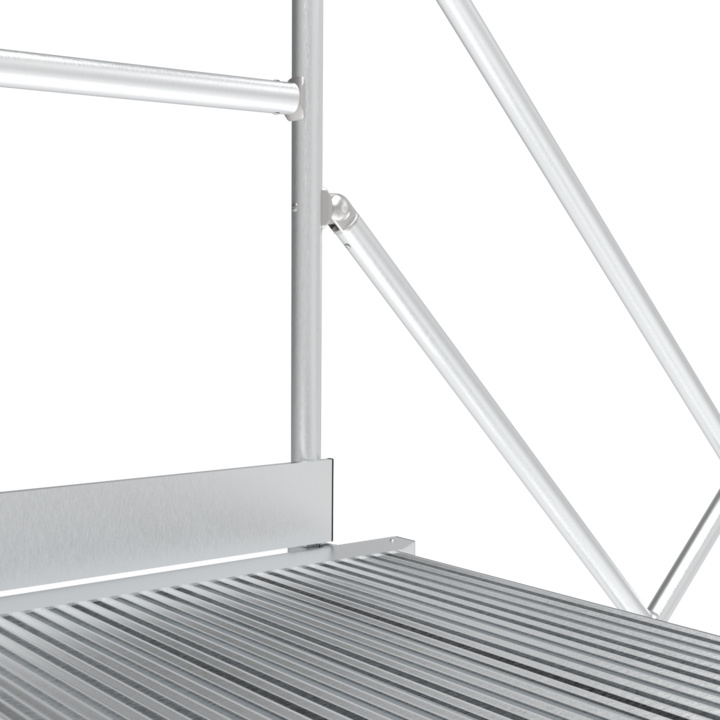

Anti-slip ribbed platform

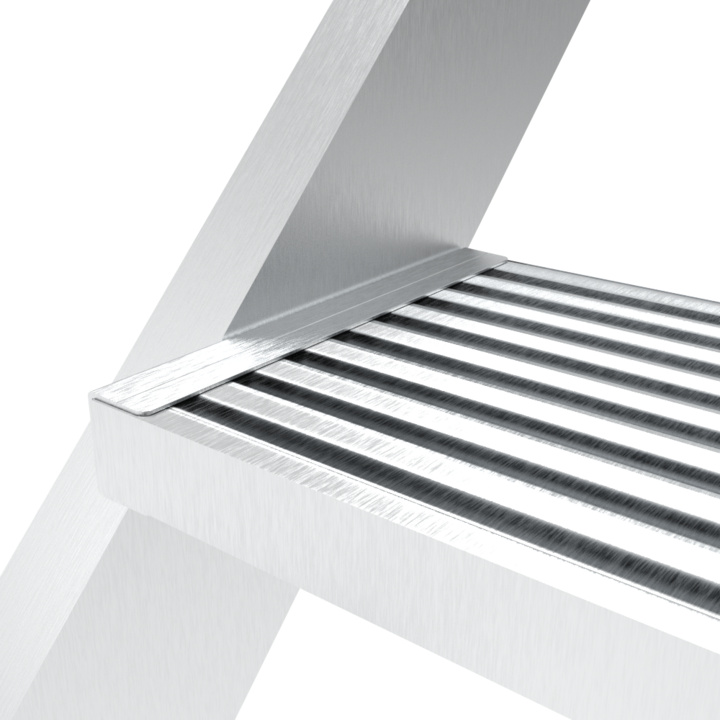

Anti-slip ribbed steps 175mm

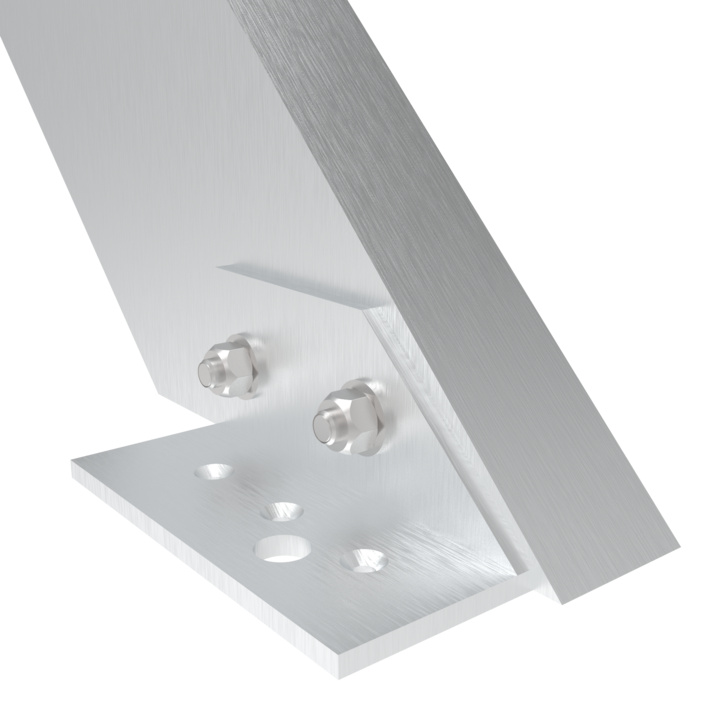

Floor fixing brackets
