Features
Step width: 600 mmMaximum platform height: 830 m
Medium designation (80)

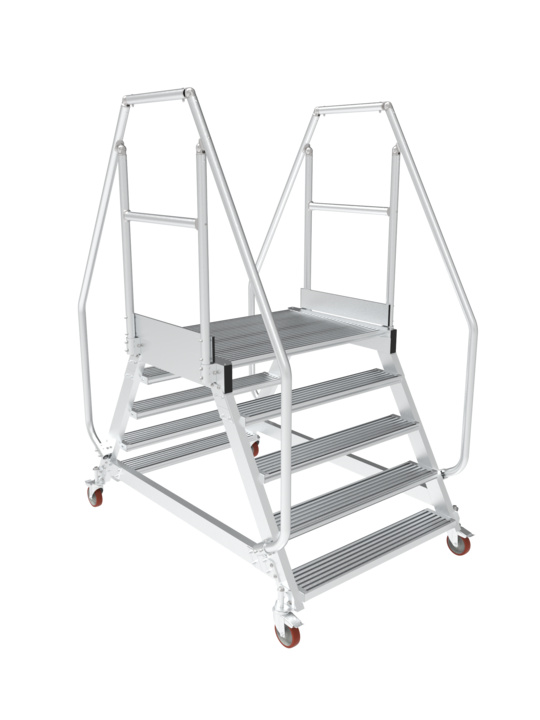

Mobile walkway, 60° inclination pf. 3m - lm. 600mm
Reference
05910003
Barcode
3178740072926
Brand
Tubesca
Standards
EN ISO 14122
Guarantee
5 year
Number of rungs / steps
4
Maximum access height
2830 m
Maximum platform height
830 m
Main material
Aluminium
Overall product height
1930 m
Overall width (without stab)
823 m
Upright section
120
Weight
55,30 kg
Maximum distributed load
200 kg/m²
Type of floor
Flat surface
Made in france
Made in France
Details
- Torsion-resistant steps bolted into the grooves of the stringers
- Platform length as standard: 780 mm. 50 mm to 3000 mm extensions can be added.
- Two handrails as standard.
- Platform with guardrail on two sides 1100 mm high with mid-braces and toe boards.
- Two braces with swivel wheels and brake.
- The diameter and positioning of the wheels are adapted to the height of the product. Diameters used: Ø125 mm and Ø150 mm.
- Support beam under the platform.Optional disengageable mobile system available. Please consult us.
- Product delivered pre-assembled in sub-assemblies (stairs, platform, guardrail, supports, etc.).
- Instruction manual provided.
- Optional gate(s) to create a work platform (protection on all four sides).

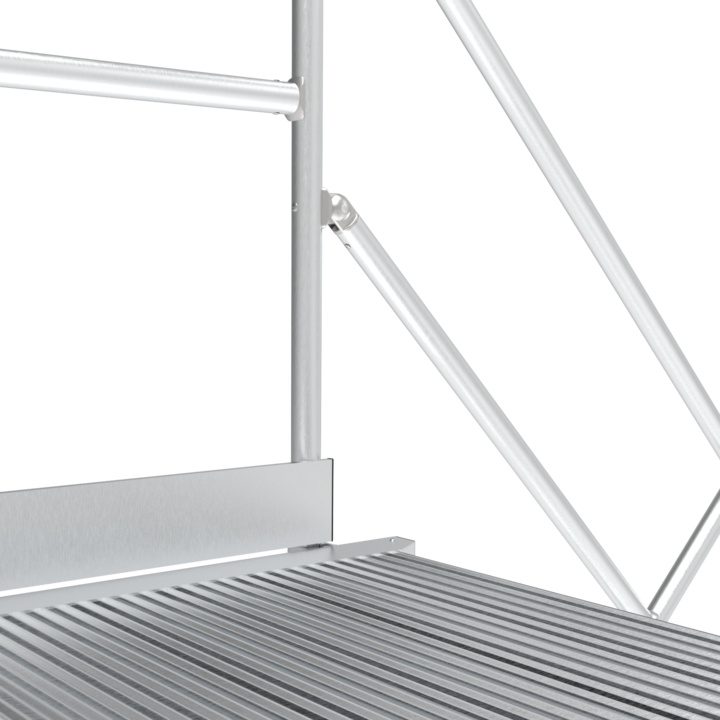

Anti-slip ribbed platform

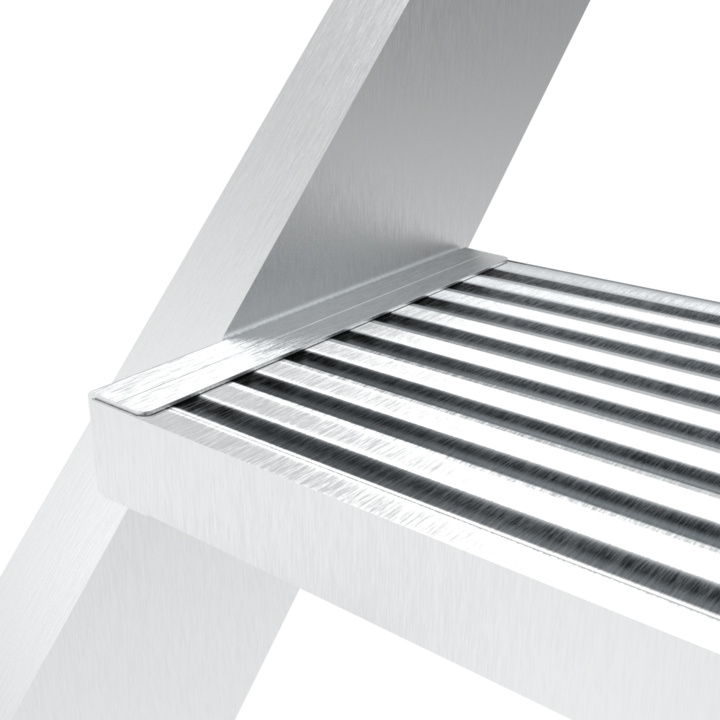

Anti-slip ribbed steps 175mm

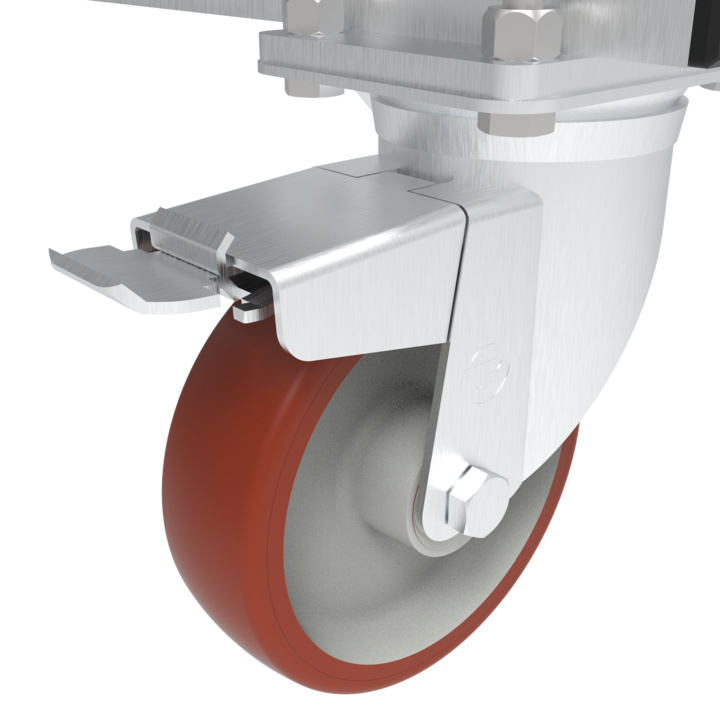

Load-bearing wheels with ultra-resistant brakes
Download the documentation
Mobile walkway, 60° inclination pf. 3m - lm. 600mm
Price on request
