Features
Step width: 600 mmMaximum platform height: 1320 m
Medium designation (80)
Platform stairway and ramp, 60° inclination pf. 5m - lm. 600mm
Reference
05904005
Barcode
3178740070618
Brand
Tubesca
Standards
EN 1090, EN ISO 14122
Guarantee
5 year
Number of rungs / steps
6
Maximum access height
3320 m
Maximum platform height
1320 m
Main material
Aluminium
Overall product height
2420 m
Overall width (without stab)
751 m
Upright section
120
Weight
31,70 kg
Maximum distributed load
200 kg/m²
Type of floor
Flat surface
Made in france
Made in France
Details

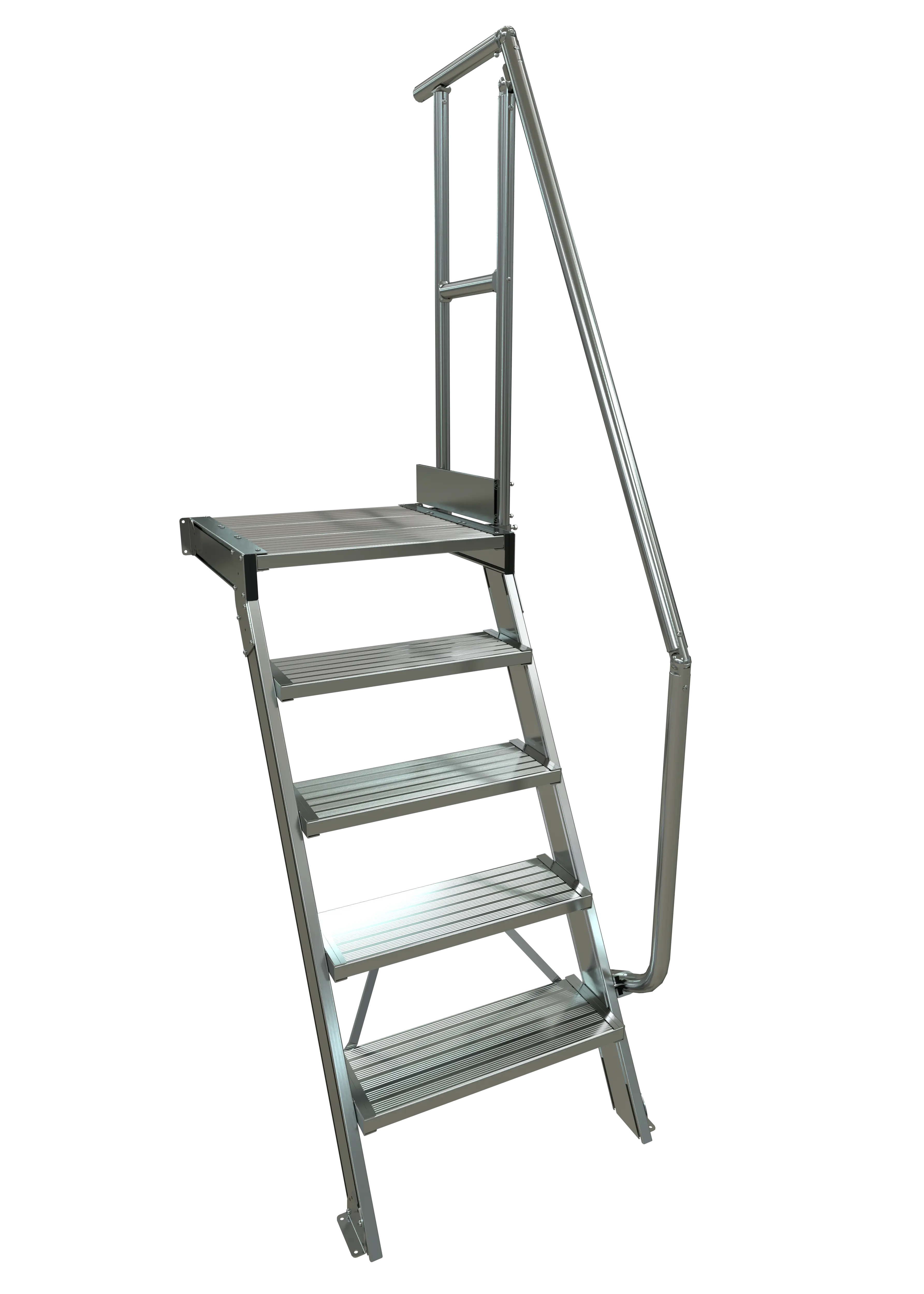

The Modul Access industrial staircase with platform and one handrail is available in three widths and two tilt angles with an optional second handrail. It is sturdy and designed with torsion-resistant steps.- Torsion-resistant steps bolted into the grooves of the stringers.
- The stairs are attached by square brackets at each end.
- Standard platform length: 740 mm. 50 mm to 1000 mm extensions can be added.

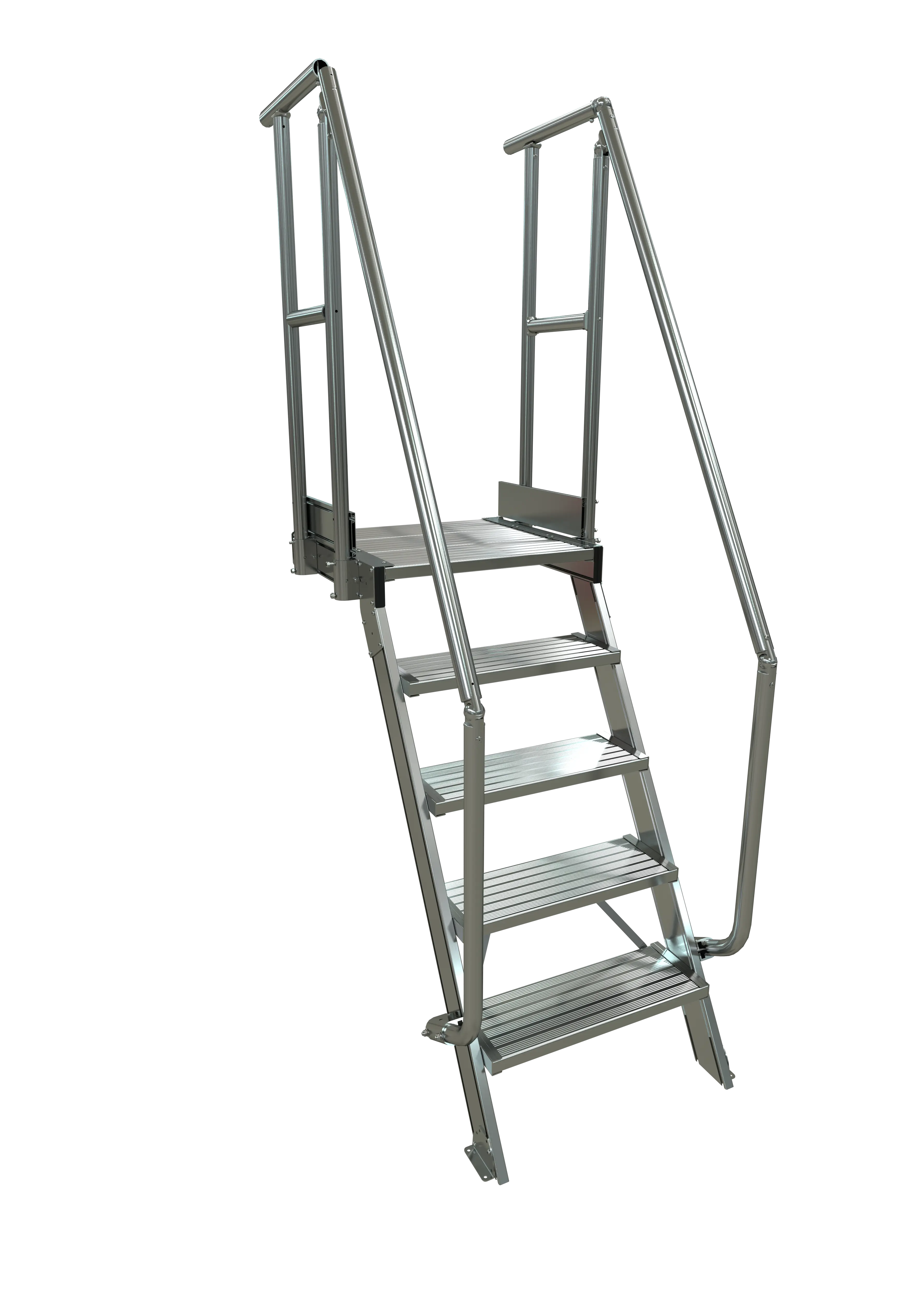

- One handrail as standard, can be mounted either on the right or left thanks to its design with grooved profiles.
- Platform with guardrail on one side 1100 mm high with mid-braces and toe boards.
- Product delivered pre-assembled in sub-assemblies (stairs, platform, guardrail, supports, etc.)
- Instruction manual provided.
- Screws to fasten to floor or wall not provided. Fasteners must be suitable for the substrate.
- Screw diameters to be provided: Ø12 mm for staircase foot, Ø8 mm for fastening to wall.

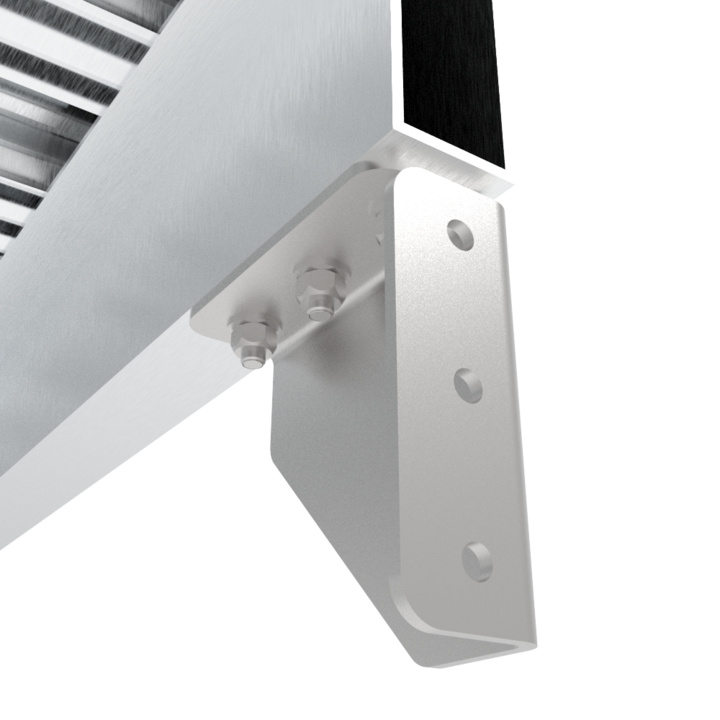

Upper fixing brackets

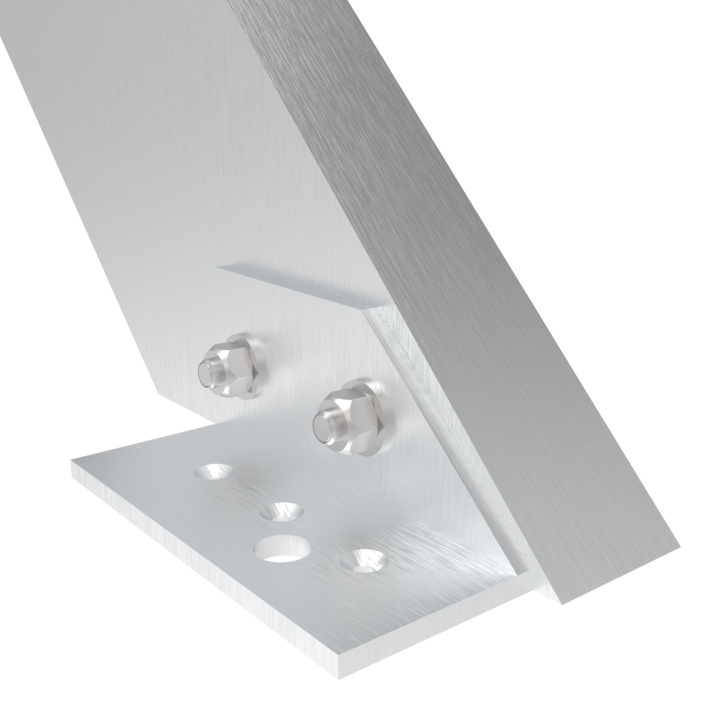

Floor fixing brackets

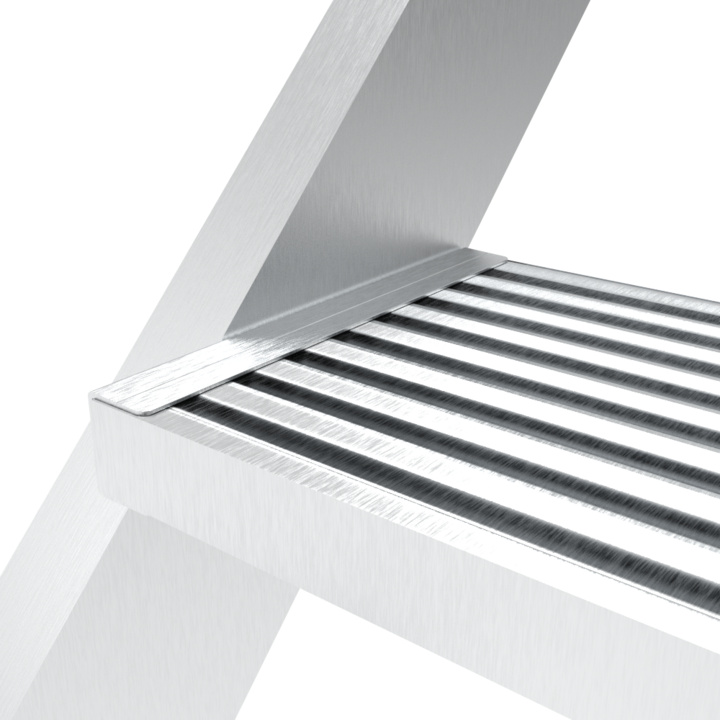

Anti-slip ribbed steps 175mm

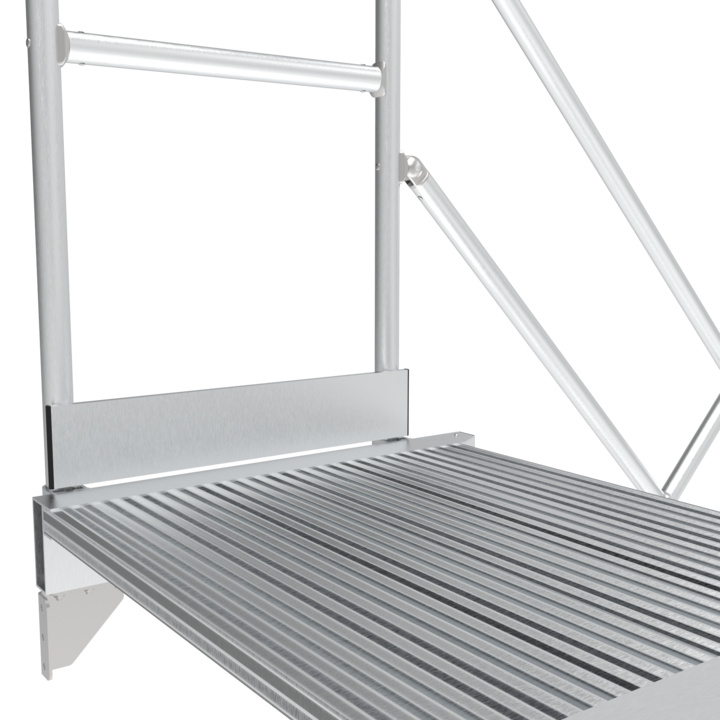

Anti-slip ribbed platform
Download the documentation
Platform stairway and ramp, 60° inclination pf. 5m - lm. 600mm
