Model specifications
Maximum platform height:1,85 m
Medium designation (80)
Scaffold tower cross 180 floor 1.85m
Reference
26404620
Barcode
3178740233716
Brand
Tubesca-Comabi
Label
Standards
EN 1004-1
Decree
2004-924
Standard requirements
Recommendation R 457
Guarantee
5 year
Class
Professional
Number of platform
1
Maximum working height
3.85 m
Maximum platform height
1.85 m
Main material
Aluminium
Overall product height
3 m
Overall width (without stab)
0.90 m
Overall width (with stab - max adjustment)
3.80 m
Weight
76 kg
Maximum distributed load
200 kg/m²
Type of floor
Flat surface, Level offset, Uneven surface
Made in france
Made in France
Percentage of recyclable material in the product
76
Percentage of recyclable material in the packaging
97
Carbon impact kg eq. CO2
554
Details
The Cross range is designed for intensive use with a usable platform surface area of 170 x 65 cm which offers good working comfort. This scaffold tower is NF 96-certified by AFNOR CERTIFICATION. The NF 96 mark certifies compliance with the NF EN 1004-1 standard. The list of certified products, together with their parts lists, is available at www.marque-nf.com. To qualify for the NF 96 mark, a scaffold tower structure erected using a certified model must, for the sub-assemblies subject to marking, comprise only those listed in the model’s NF parts list.- Greater working comfort thanks to wider ladders and platforms.
- The platform with integrated toe boards is highly regarded by safety authorities. It ensures safety and fast assembly.
- The ends of the braces and midbraces have ribbed jaws / notched jaws that snap into place automatically during installation. They provide a highly reliable anti-fall connection.
- The braces are easy to attach and remove thanks to the T-Grip pole.
- Sturdy and reliable safety railings. The rectangular railing panels can be easily fitted and removed using the T-Grip bar
- The tray base with integrated skirting board is highly regarded by safety authorities. It guarantees safety and quick assembly
- The platforms feature handles on the end bases, which facilitate transport and loading, as well as ergonomic hooks for easy assembly
- Each wheel can be individually adjusted in height over a range of 175 mm, in 12.5 mm increments. This adjustment allows adaptation to all floor conditions
- The castors are fitted with a bidirectional locking system that ensures perfect stability during use

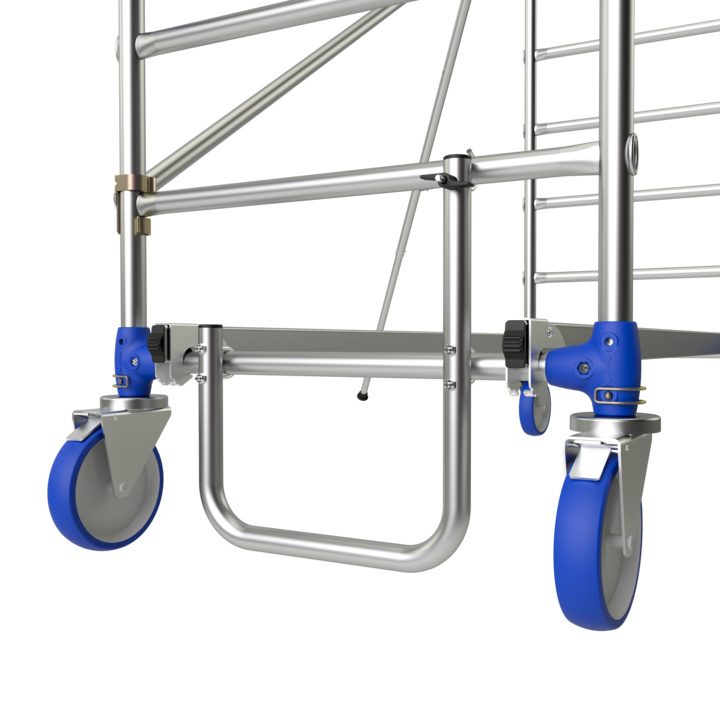

Access cradle for greater safety

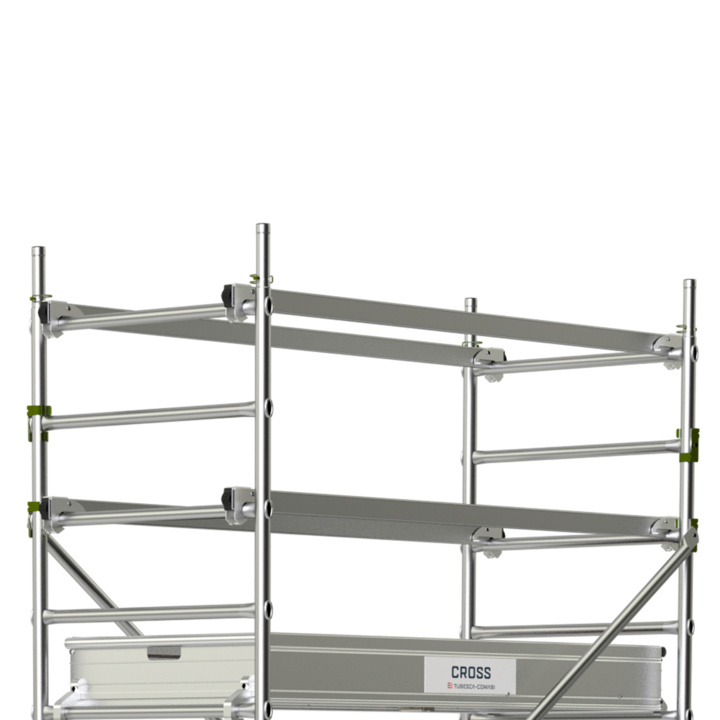

Braces guardrails

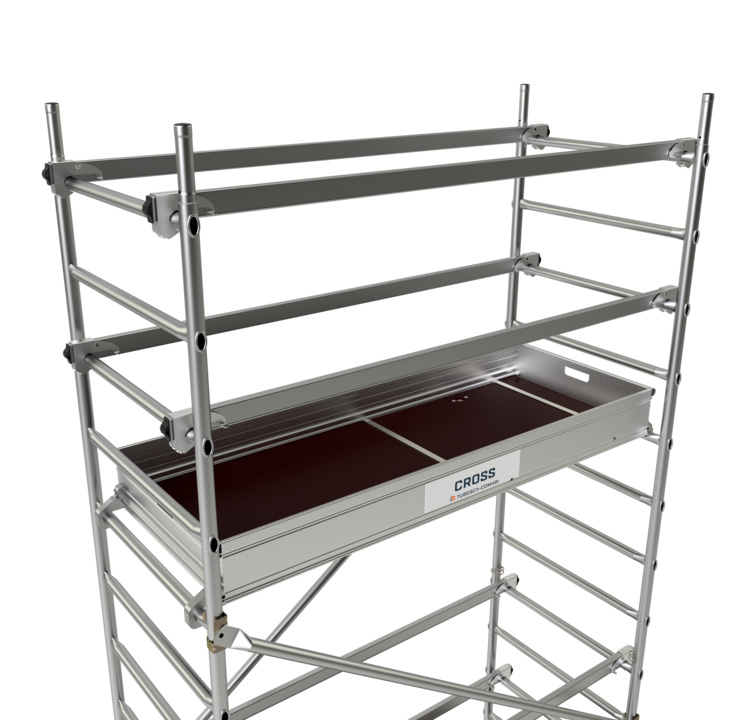

Platform (inside) 1.70 x 0.65m

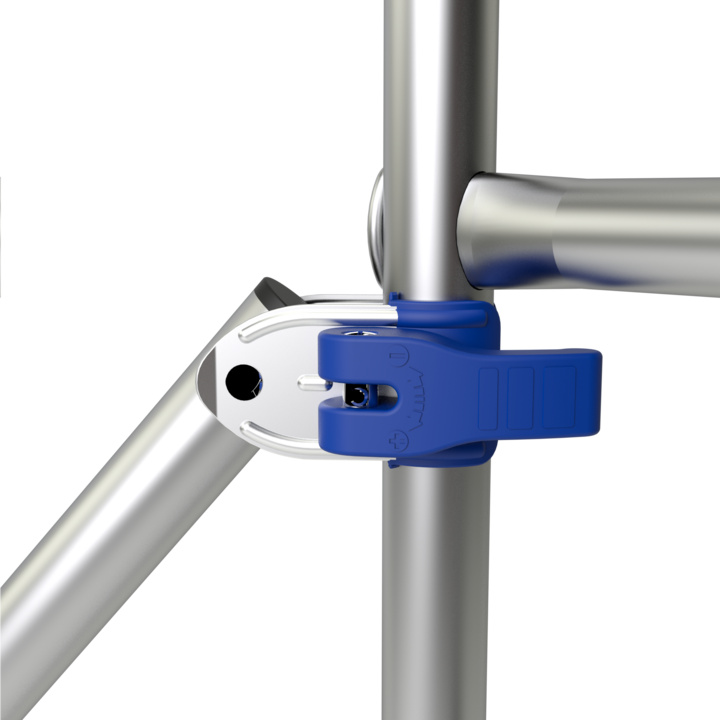

Ergoblock® single movement locking system

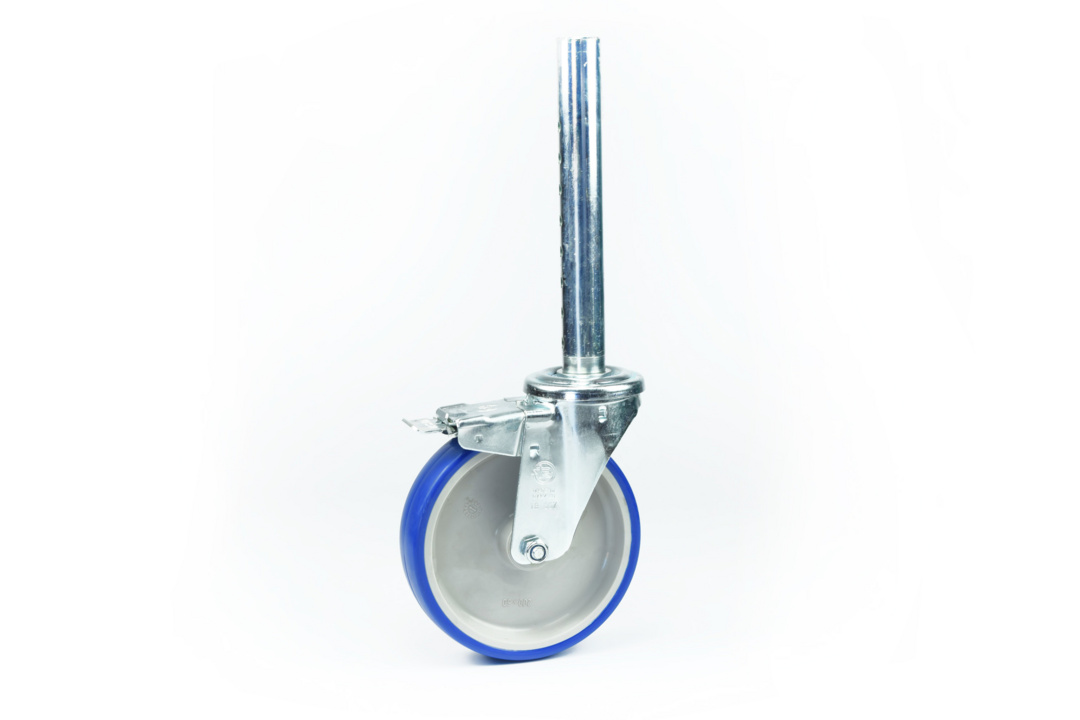

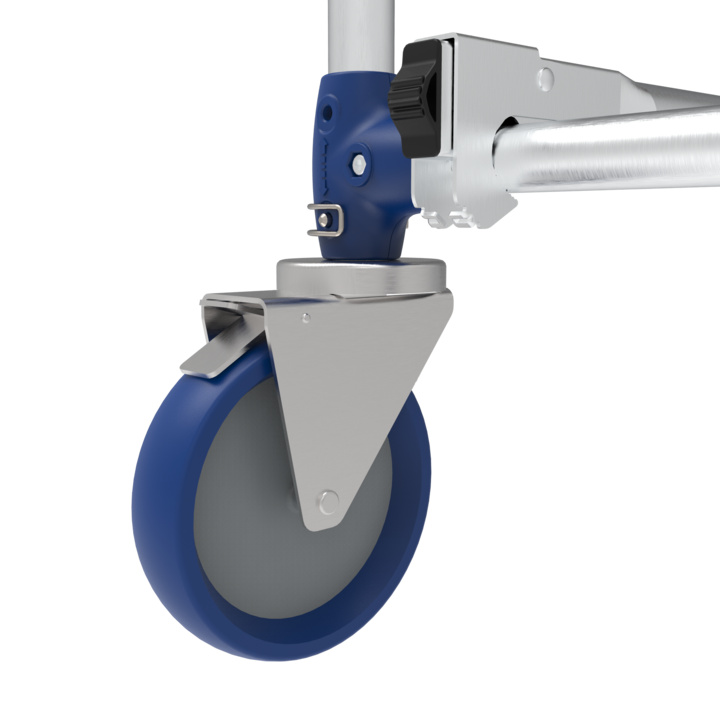

Wheels Ø 200mm adjustable up to 175mm up to 12.5mm increments

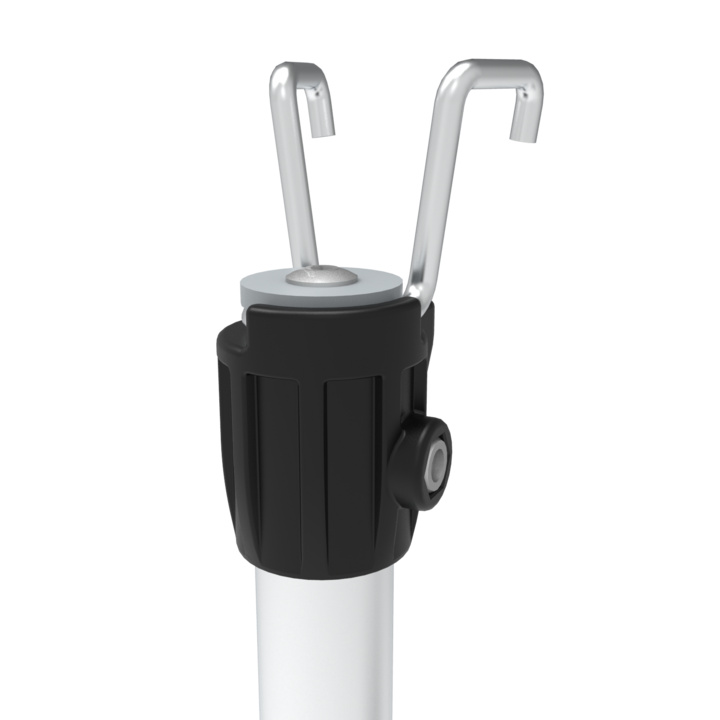

The braces and midbraces fit easily into place with the T-Grip pole

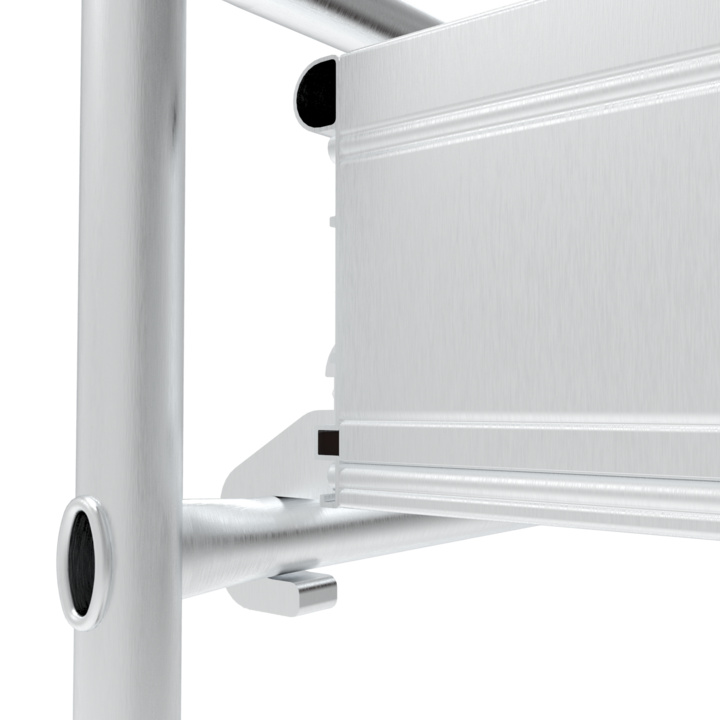

Ergonomic hooks to facilitate platform installation
