Model specifications
Maximum platform height:2,30 m
Medium designation (80)
Generis tower 450 floor 2.30m
Reference
04100038
Barcode
3534740130514
Brand
Comabi
Decree
2004-924
Guarantee
2 year
Class
Professional
Number of platform
1
Maximum working height
4.30 m
Maximum platform height
2.30 m
Main material
Steel
Overall product height
3.30 m
Overall width (without stab)
1.61 m
Overall width (with stab - max adjustment)
3.33 m
Weight
292 kg
Maximum distributed load
200 kg/m²
Type of floor
Flat surface, Level offset
Made in france
Made in France
Details
The Generis 450 galvanised steel tower has a wide platform measuring 290 x 146 cm, which allows it to hold bulky objects and store equipment. Furthermore, its 200 mm wheels with millimetric adjustment system and its platform adjustable in one metre intervals mean this platform can be adjusted to suit any surface.- Simplified assembly with one-piece frames
- Extension metre by metre for assembly in complete safety
- Standard 3.00 m platforms compatible with COMABI fixed scaffolding
- Compatible with R200 and M368 structures
- Large work area
- One-piece frames for quick and easy installation
- Galvanised steel: increased stability and durability
- Millimetric wheel adjustment system over a 37 cm range
- Ø250 mm locking wheels
- Total authorised load 500 kg

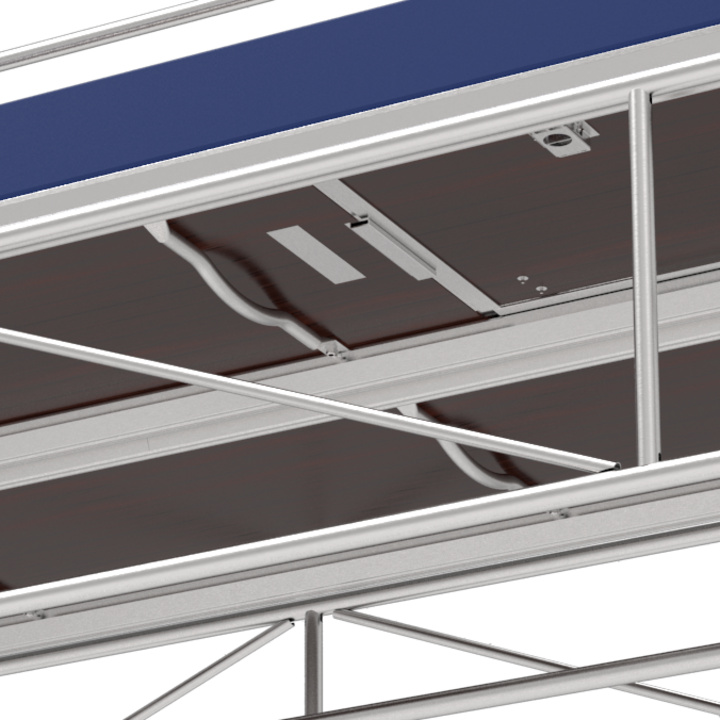

Standard platforms compatible with COMABI fixed scaffolding

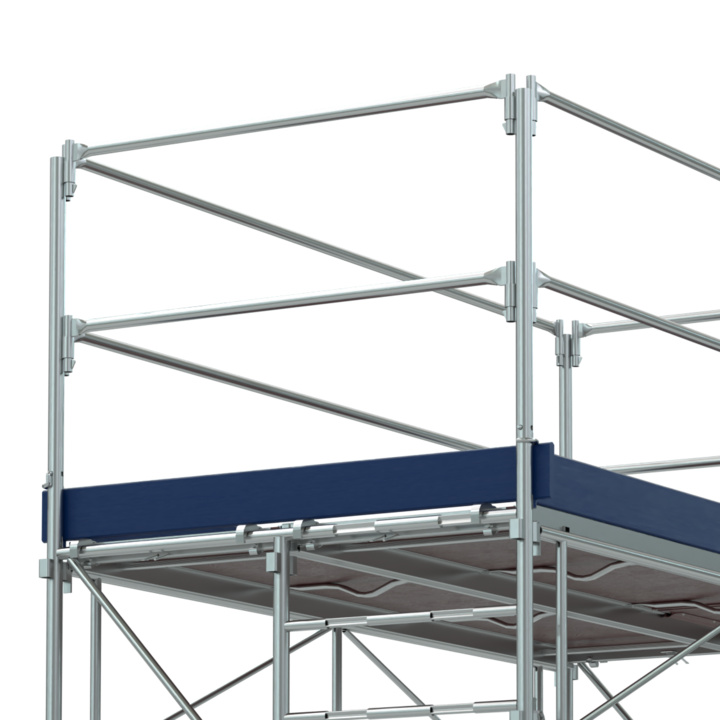

4.5 m² of working area

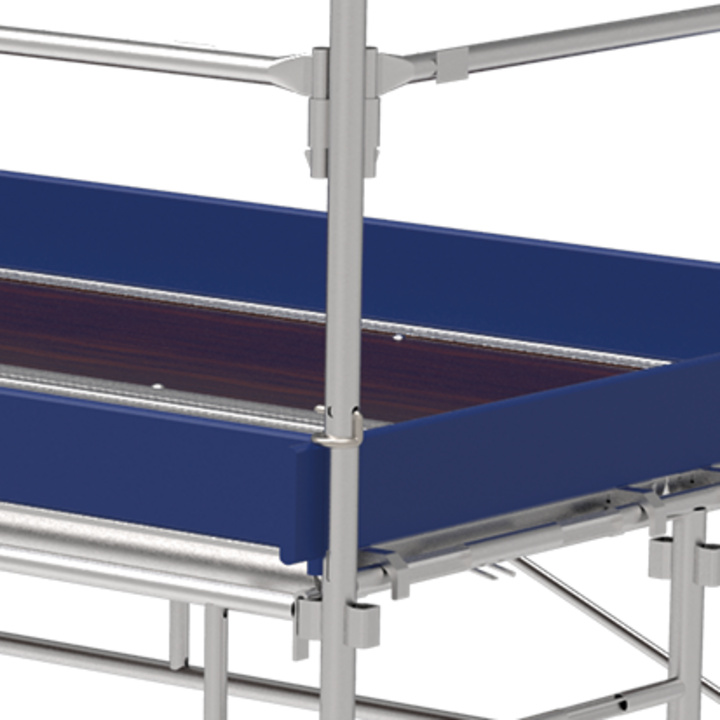

Platform adjustment every metre

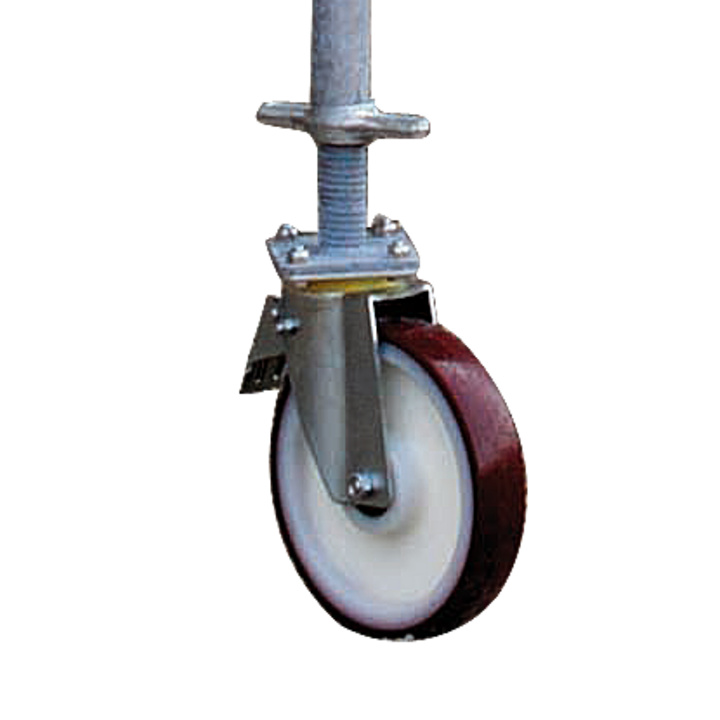

370 mm adjustable screw-in feet

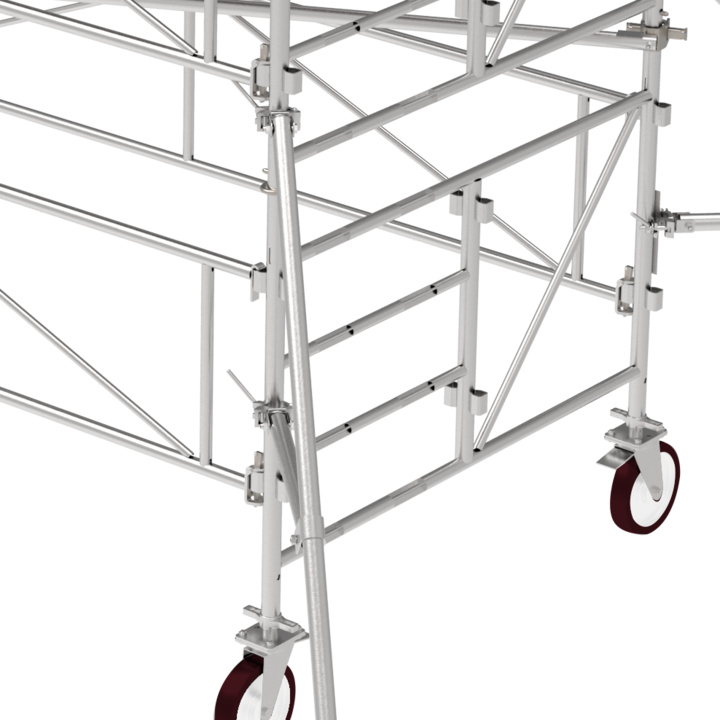

Single-piece frames: high degree of rigidity in the structure
Download documentation
Accessories and complementary products
Configuration parts
Choose your option
Configuration name
Generis tower 450 floor 2.30m
Price on request
