Features
Maximum platform height: 2,30 m
Medium designation (80)
Generis tower 900 floor 2.30m
Reference
04100029
Barcode
3534740130422
Brand
Comabi
Decree
2004-924
Guarantee
2 year
Class
Professional
Number of platform
1
Maximum working height
4,30 m
Maximum platform height
2,30 m
Main material
Steel
Overall product height
3,30 m
Overall width (without stab)
3,14 m
Overall width (with stab - max adjustment)
3,14 m
Weight
347 kg
Maximum distributed load
200 kg/m²
Type of floor
Flat surface, Level offset
Made in france
Made in France
Details
The Generis 900 galvanised steel tower has a wide platform measuring 290 x 290 cm, which allows it to hold bulky objects and store equipment. Furthermore, its 200 mm wheels with millimetric adjustment system and its platform adjustable in one metre intervals mean this platform can be adjusted to suit any surface.- Simplified assembly with one-piece frames
- Extension metre by metre for assembly in complete safety
- Standard 3.00 m platforms compatible with COMABI fixed scaffolding
- Compatible with R200 and M368 structures
- Large platform with 9 m² platform surface area
- Freestanding up to a working height of 8.30 m
- Millimetric wheel adjustment system over a 37 cm range
- Galvanised steel: increased stability and durability
- Ø250 mm locking wheels
- Total authorised load 500 kg
- Up to a working height of 20.30 m

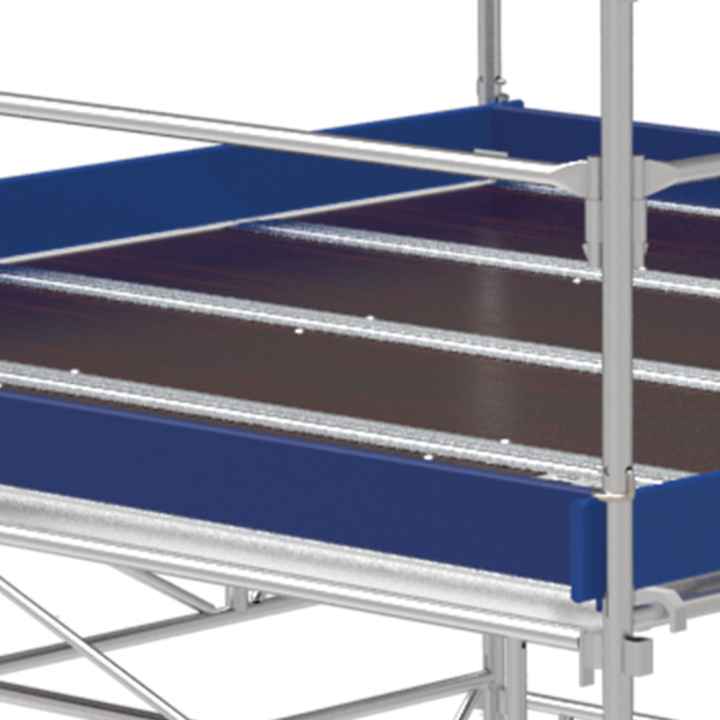

Standard platforms compatible with COMABI fixed scaffolding

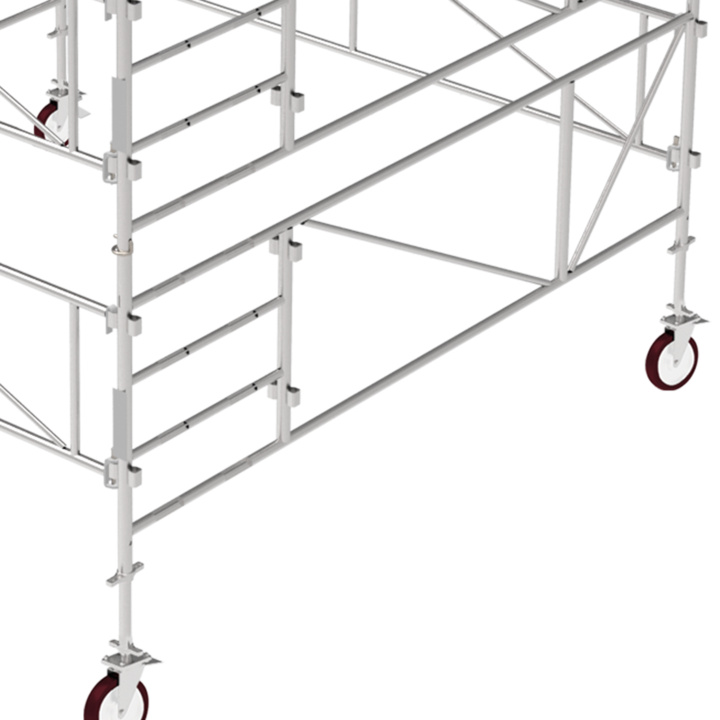

One-piece frames with a highly rigid structure

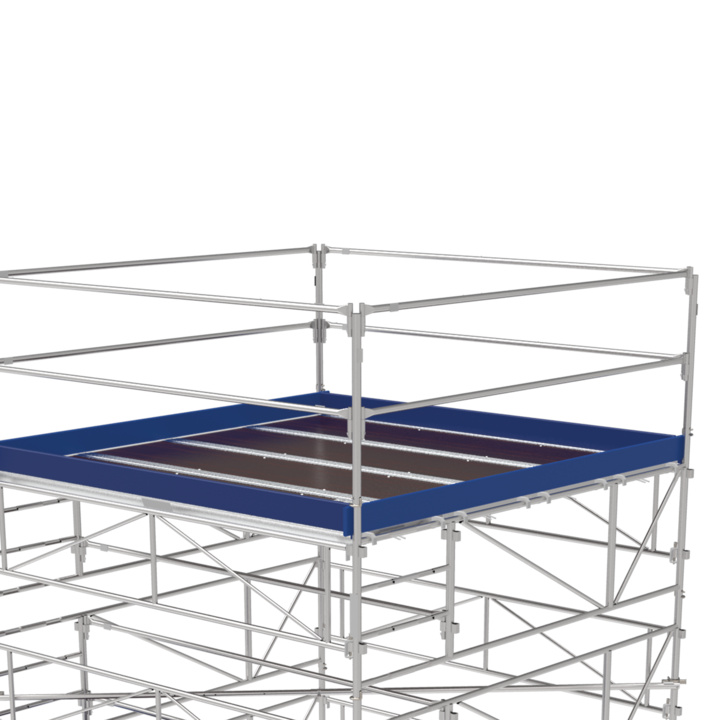

9 m² of work surface area

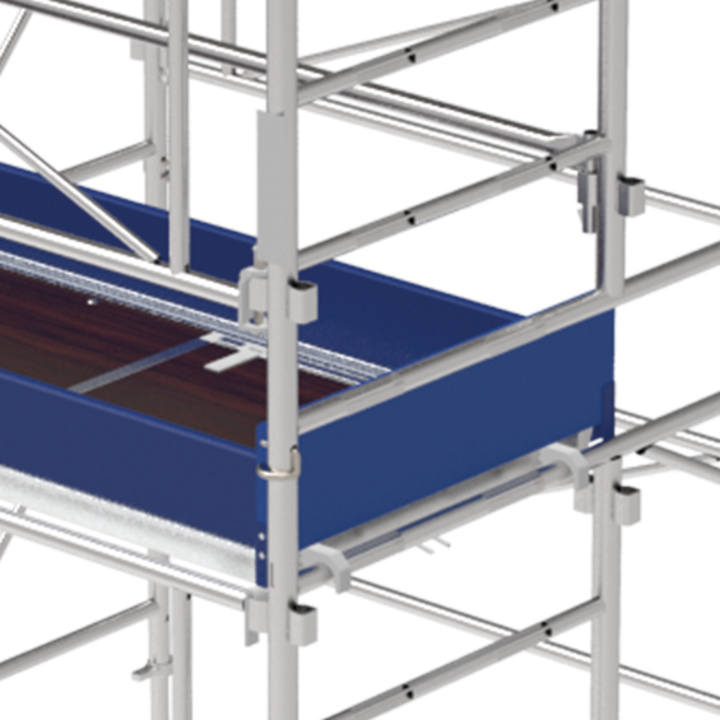

Floor adjustment every 1 m

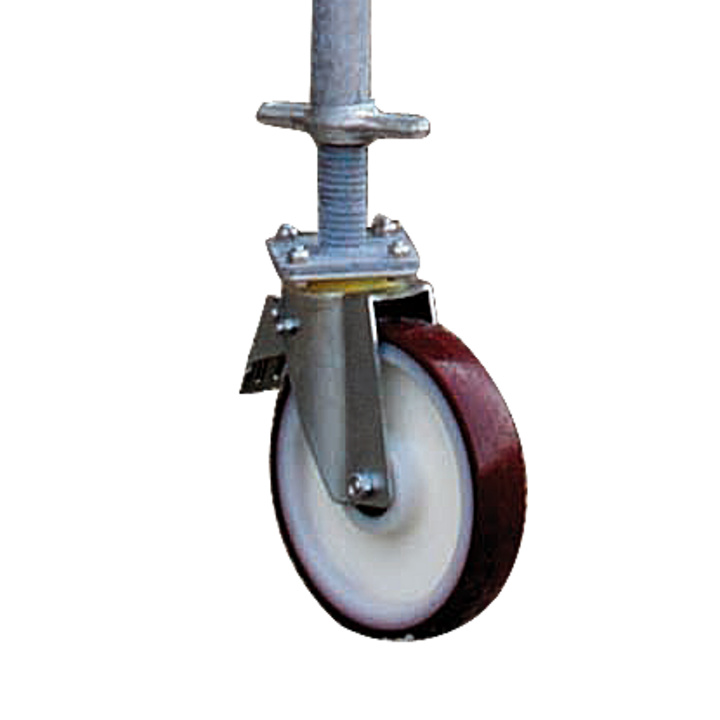

370mm adjustable screw feet
Download the documentation
