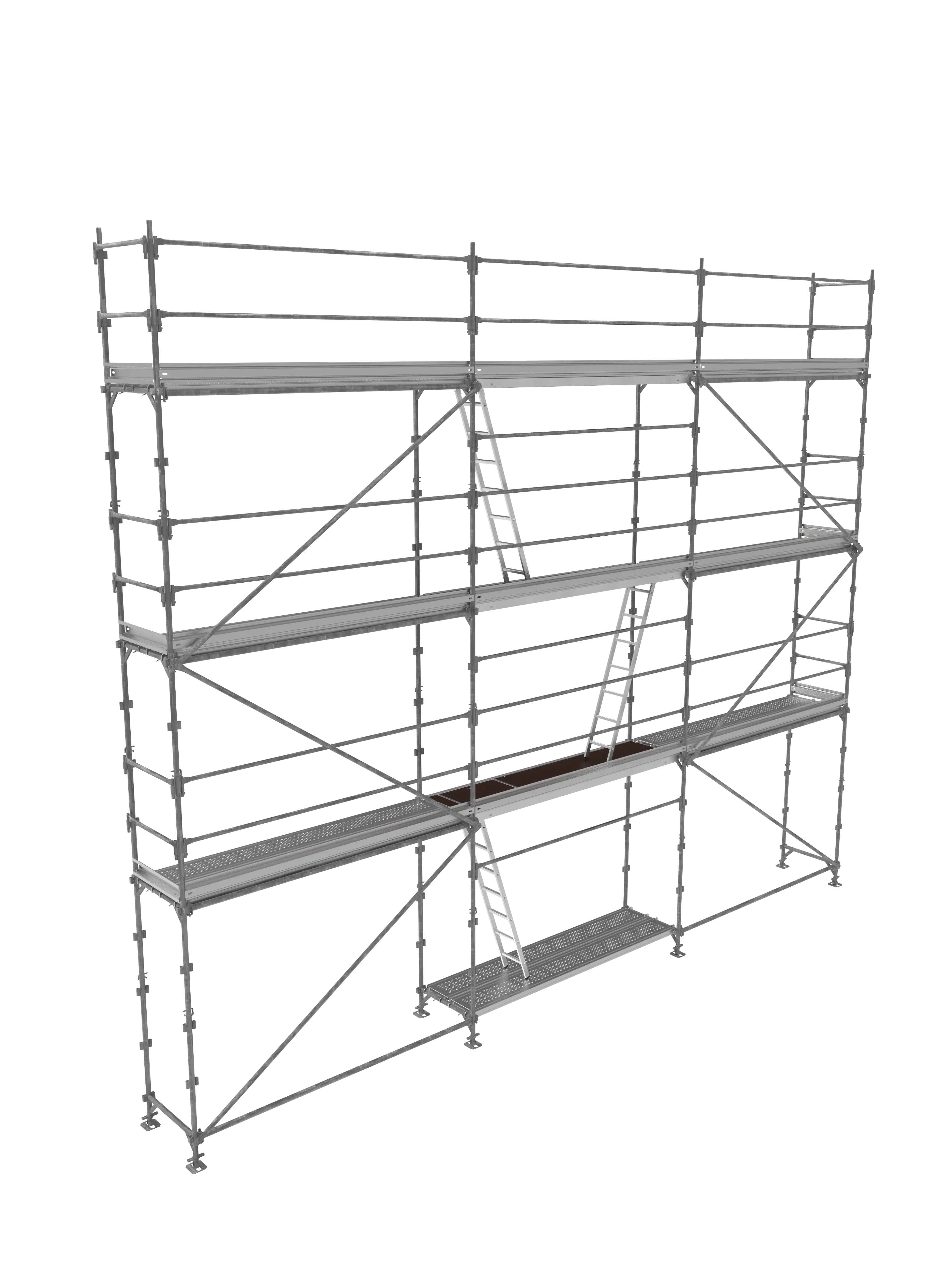

Model specifications
Work area:80 m²Type of guardrail:Top railsMaterial of the platform:SteelType of access:Access hatch
Medium designation (80)
R200-First80m²-bracesS+pl ac
Reference
0P000396
Barcode
3534740159744
Brand
Comabi
Label
Standards
EN 12810, EN 12811
Guarantee
2 year
Main material
Steel
Weight
894.90 kg
Maximum distributed load
200 kg/m²
Made in france
Made in France
Details
This scaffolding is NF96-certified by AFNOR CERTIFICATION. The NF mark certifies compliance with standards NF EN 12810-1 and 2, and NF EN 12811-1, 2 and 3. The list of certified products, together with their parts lists, is available at www.marque-nf.com. To qualify for the NF mark, a scaffolding structure erected using a certified model must, for the sub-assemblies subject to marking, comprise only those listed in the NF96 parts list for that model.First 80 m²
W: 9.00 m - H: 6.00 m floor
Working area 10 x 8 m
2 sets of 3 anchor points recommended
2 versions: aluminium and steel
Medium 104 m²
W: 12.00 m - H: 6.00 m floor
Working area 13 x 8 m
3 sets of 3 anchor points recommended
1 version: steel
Medium 130 m²
W: 12.00 m - H: 8.00 m floor
Working area 13 x 10 m
3 sets of 3 anchor points recommended
1 version: steel
Premium 160 m²
W: 15.00 m - H: 8.00 m floor
Working area 16 x 10 m
4 sets of 3 anchor points recommended
1 steel version
R200-First80m²-bracesS+pl ac
Price on request
