Features
Work area: 80Type of guardrail: FusioMaterial of the platform: Aluminium/woodType of access: Access hatch
Medium designation (80)
R200-First80m²-Fusio-PL Aluboi
Reference
0P000397
Barcode
3534740159751
Brand
Comabi
Label
NF 96
Standards
EN 12810, EN 12811
Guarantee
2 year
Main material
Steel
Weight
768,90 kg
Maximum distributed load
200 kg/m²
Details

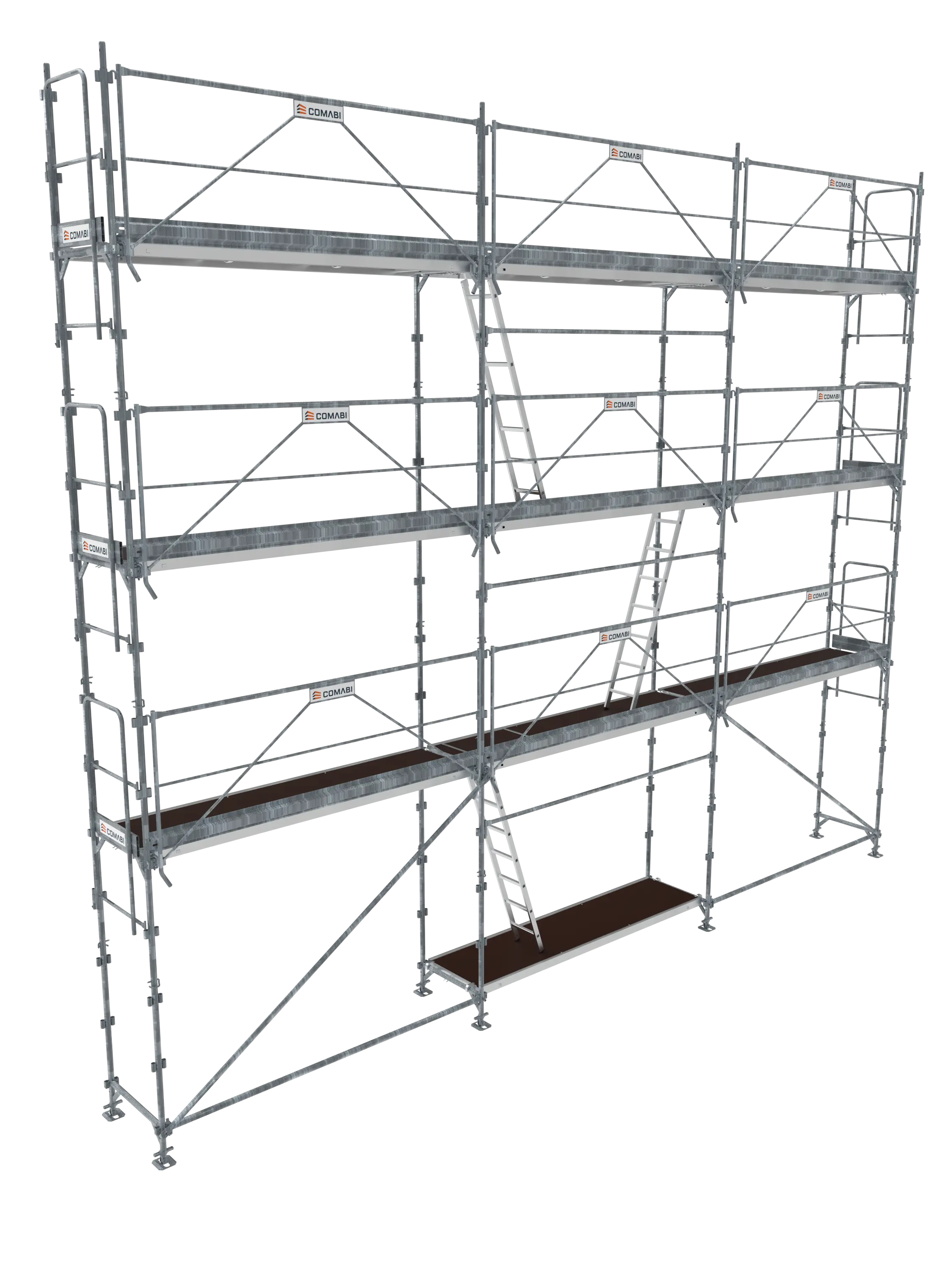

The R200 scaffolds consist of H-frame structures that allow for quick and intuitive assembly. The PROGRESS version in steel ensures great robustness. It is designed to meet the most demanding usage conditions. Its steel structure withstands shocks, cleaning, and other stresses. It remains easy to assemble thanks to the H-frame design of the R200 frames and the ergonomic components. The R200 Progress scaffold sets – with monobloc guardrails – are available in 80, 104, 130, and 160 m² versions with R08 aluminium-wood or RCE steel platforms.First 80 m²
W: 9.00 m - H: 6.00 m floor
Working area 10 x 8 m
2 sets of 3 anchorages recommended
2 versions: aluminium and steel
Medium 104 m²
W: 12.00 m - H: 6.00 m floor
Working area 13 x 8 m
3 sets of 3 anchorages recommended
1 version: steel
Medium 130 m²
W: 12.00 m - H: 8.00 m floor
Working area 13 x 10 m
3 sets of 3 anchorages recommended
1 version: steel
Premium 160 m²
W: 15.00 m - H: 8.00 m floor
Working area 16 x 10 m
4 sets of 3 anchorages recommended
1 steel version
R200-First80m²-Fusio-PL Aluboi
Price on request
