Features

Work area: 80Type of guardrail: Securit'UpMaterial of the platform: Aluminium/woodType of access: Access hatch
Medium designation (80)
R200rec First 80m² r08c s'up
Reference
0P000634
Barcode
3534740171562
Brand
Comabi
Label
NF 96
Standards
EN 12810, EN 12811
Guarantee
2 year
Main material
Aluminium
Weight
607,10 kg
Maximum distributed load
200 kg/m²
Made in france
Made in France

Details

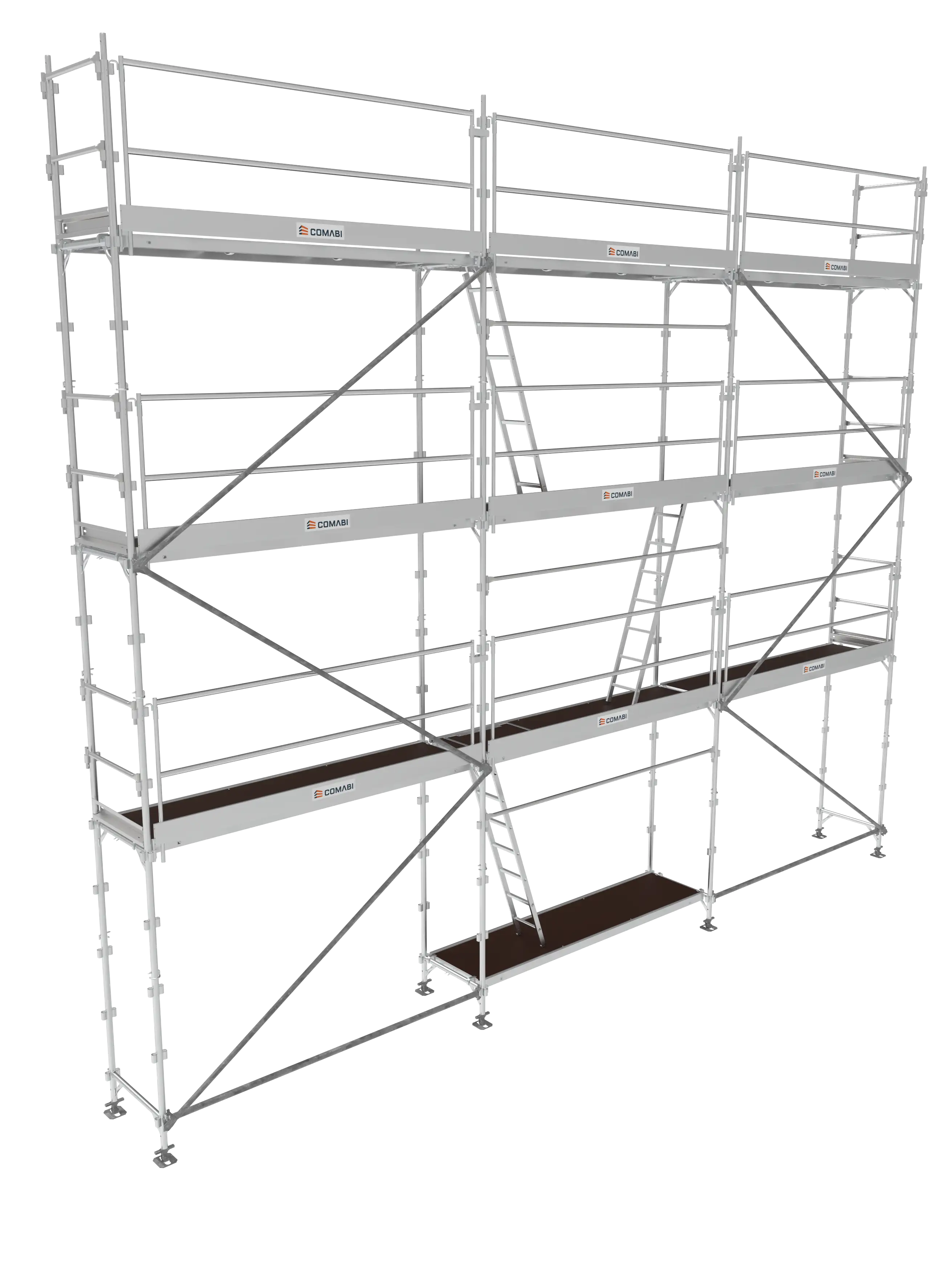

The R200 scaffolds consist of H-frames that allow for quick and intuitive assembly. The RECORD aluminium version is designed to facilitate assembly by reducing the effort required from operators. The very lightweight aluminium structure decreases assembly time as well as load transfers on sensitive buildings. The RECORD version saves time during operation and increases assembler satisfaction. It does not compromise on robustness, featuring uprights with a diameter of 49.1 mm and a keyed assembly for rapid mounting. The monobloc R200 Record sets can be easily and safely assembled by a single operator. R200 Record monobloc sets with guardrails are available in 60 m², 80 m², and 160 m² versions with stairs. They come with either R08 aluminium-wood or aluminium decking.

Primo 60 m²

  • L: 9.00 m – H: 4.00 m floor
  • Working area 10 x 6 m
  • 2 sets of 3 moorings recommended (1)
  • 1 steel version


First 80 m²

  • L: 9.00 m - H: 6.00 m floor
  • Working area 10 x 8 m
  • 2 sets of 3 moorings recommended (1)
  • 2 versions: aluminium and steel


Premium 160 m² with stairs

  • L: 15.00 m - H: 8.00 m floor
  • Working area 16 x 10 m
  • 4 sets of 3 moorings recommended (1)
  • 1 steel version
  • Unistep staircase 8.00 m


R200rec First 80m² r08c s'up

Price on request
