Model specifications
Maximum working height:3,50 m
Medium designation (80)

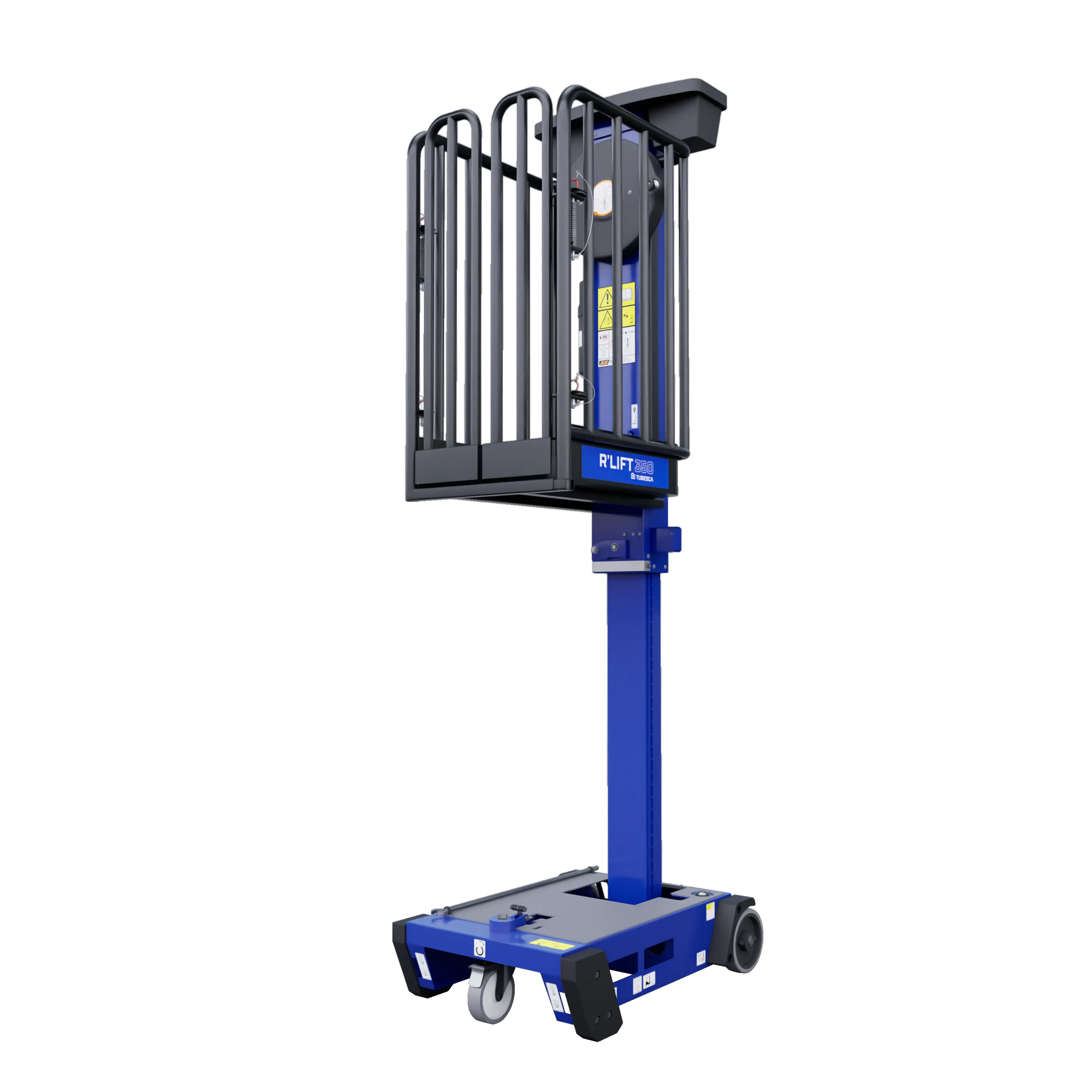

R'LIFT 350 personal lift
Reference
05026001
Barcode
3178740263829
Brand
Tubesca
Standards
EN 280
Standard requirements
Machinery Directive 2006/42/EC - R486
Guarantee
2 year
Maximum working height
3.50 m
Maximum platform height
1.50 m
Main material
Steel
Overall width (without stab)
0.72 m
Weight
196 kg
Maximum load
150 kg
Type of floor
Flat surface
Details
The R'LIFT range provides a high level of ergonomics, productivity and safety. Providing safety from the ground and easy to use, the R'LIFT is a workstation that is appreciated by users, factory managers and QHSE managers. A specific training should be provided to verify the acquired knowledge in order to provide the employee with the driving authorisation necessary for using these products. A six-monthly inspection of products should be carried out by a designated competent person or competent authority.- Safety from the ground

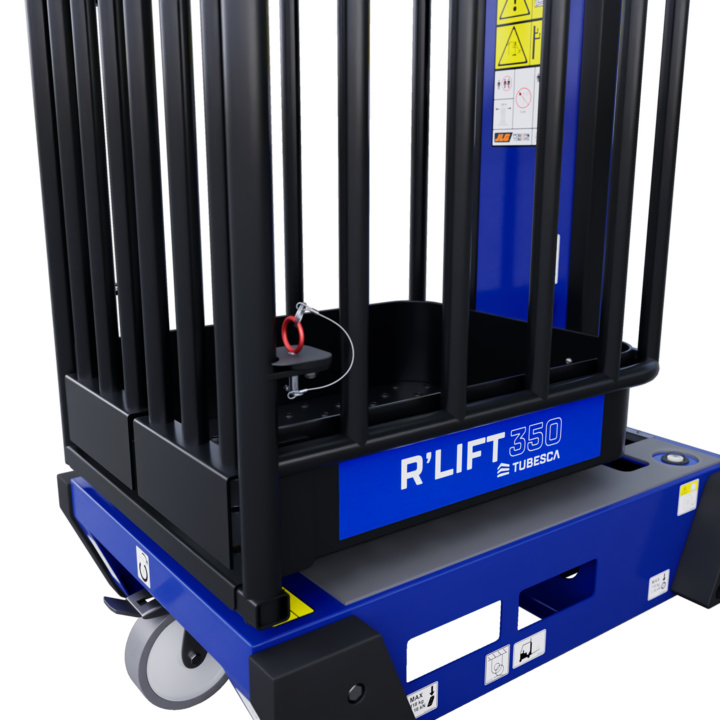

- Steel guardrail with cage
- Ready to use, operates without power using a patented gas spring system
- Intuitive and effortless for maximum protection against ergonomic risks
- Means you are always working at the right height
- Easy to move around on site
- 0.72 x 0.60 m platform
- 150 mm front wheels with brake and 200 mm rear wheels

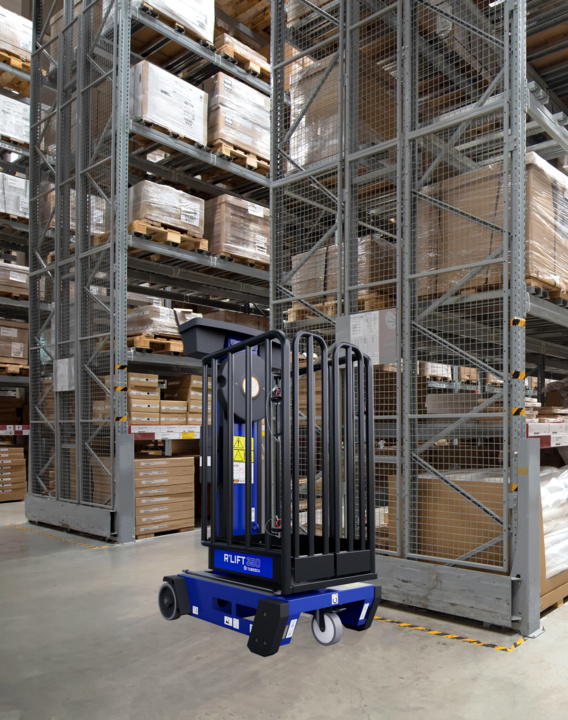

- Designed for indoor use
- Can be moved by forklift / pallet truck
- Steering ratio: maximum elevation in a few rotations
- Allows a tilt of 0.5° (<1%) during use, refer to the integrated spirit level

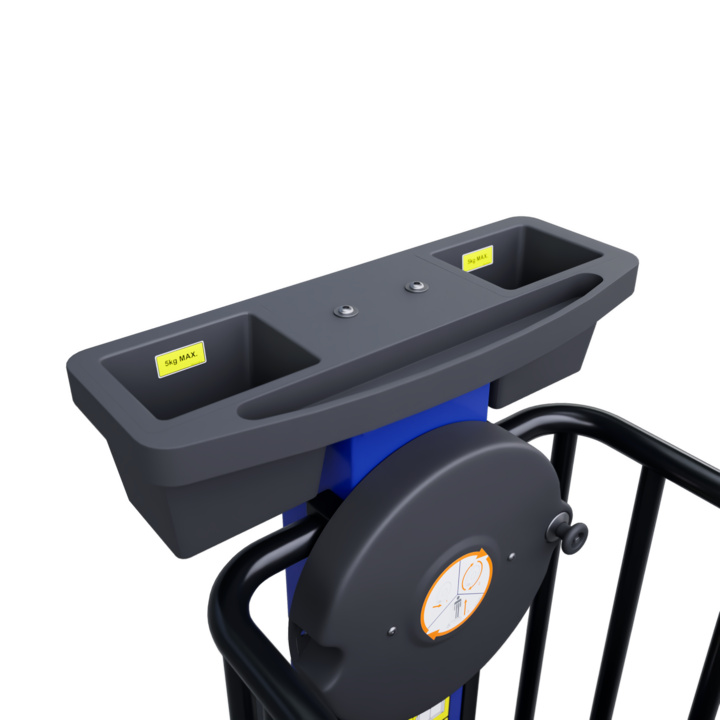

Integrated tool holder

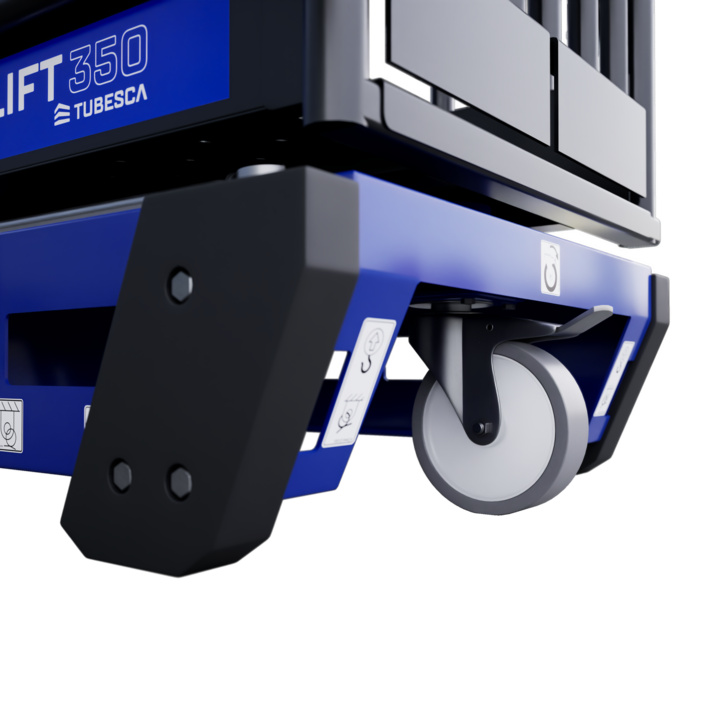

Front wheel with brake

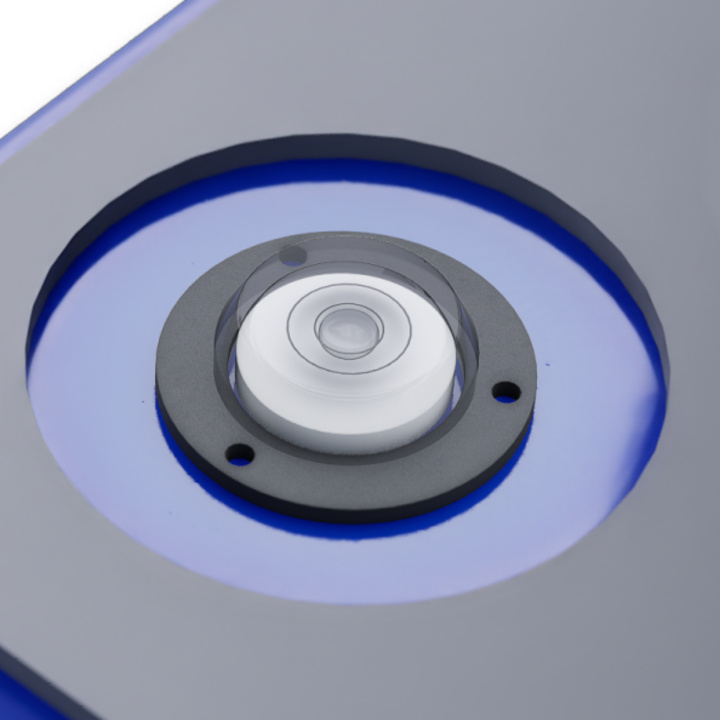

Integrated spirit level with markings

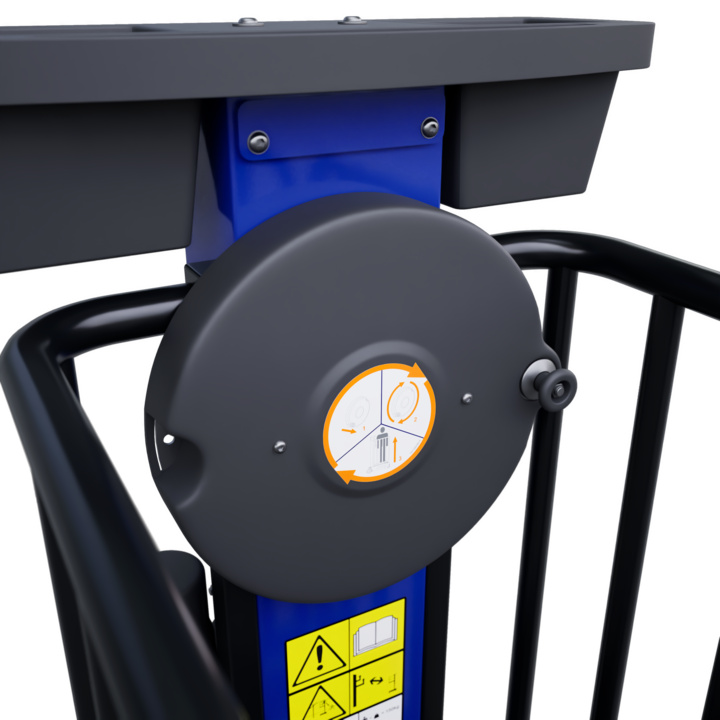

Steering wheel for assisted manual lifting

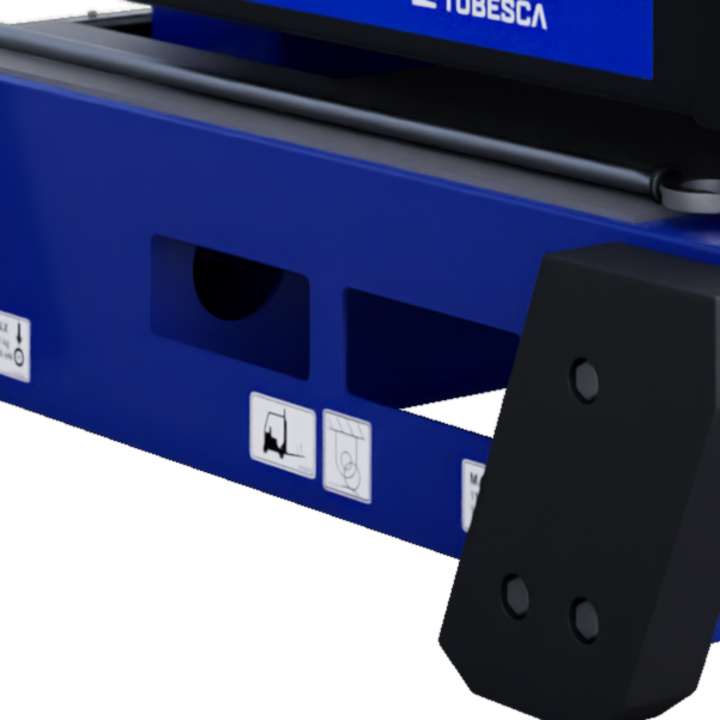

Transportable with a forklift/pallet truck
Download documentation
Watch the video

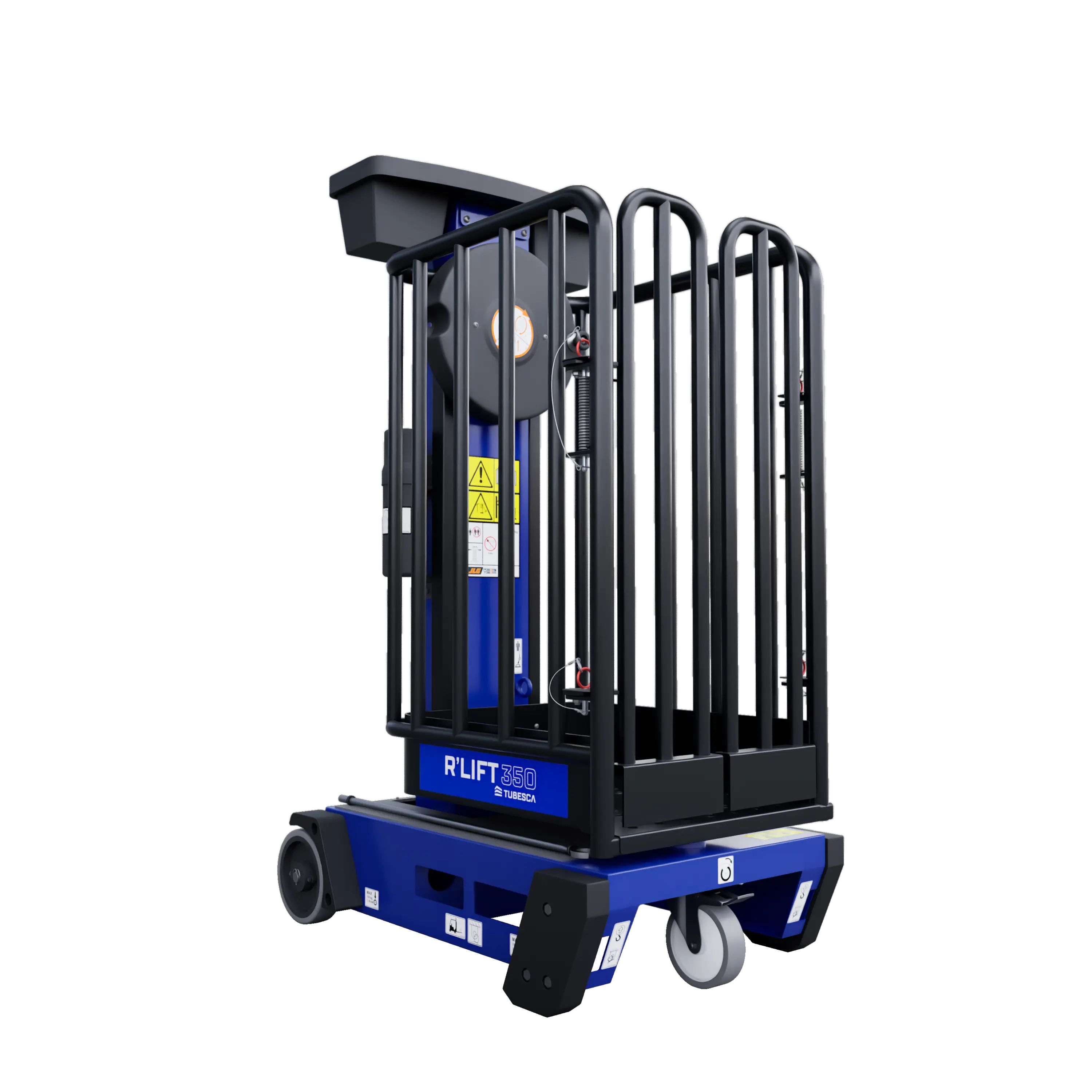

R'LIFT 350 personal lift
Price on request
