Features
Maximum working height: 4,20 m
Medium designation (80)

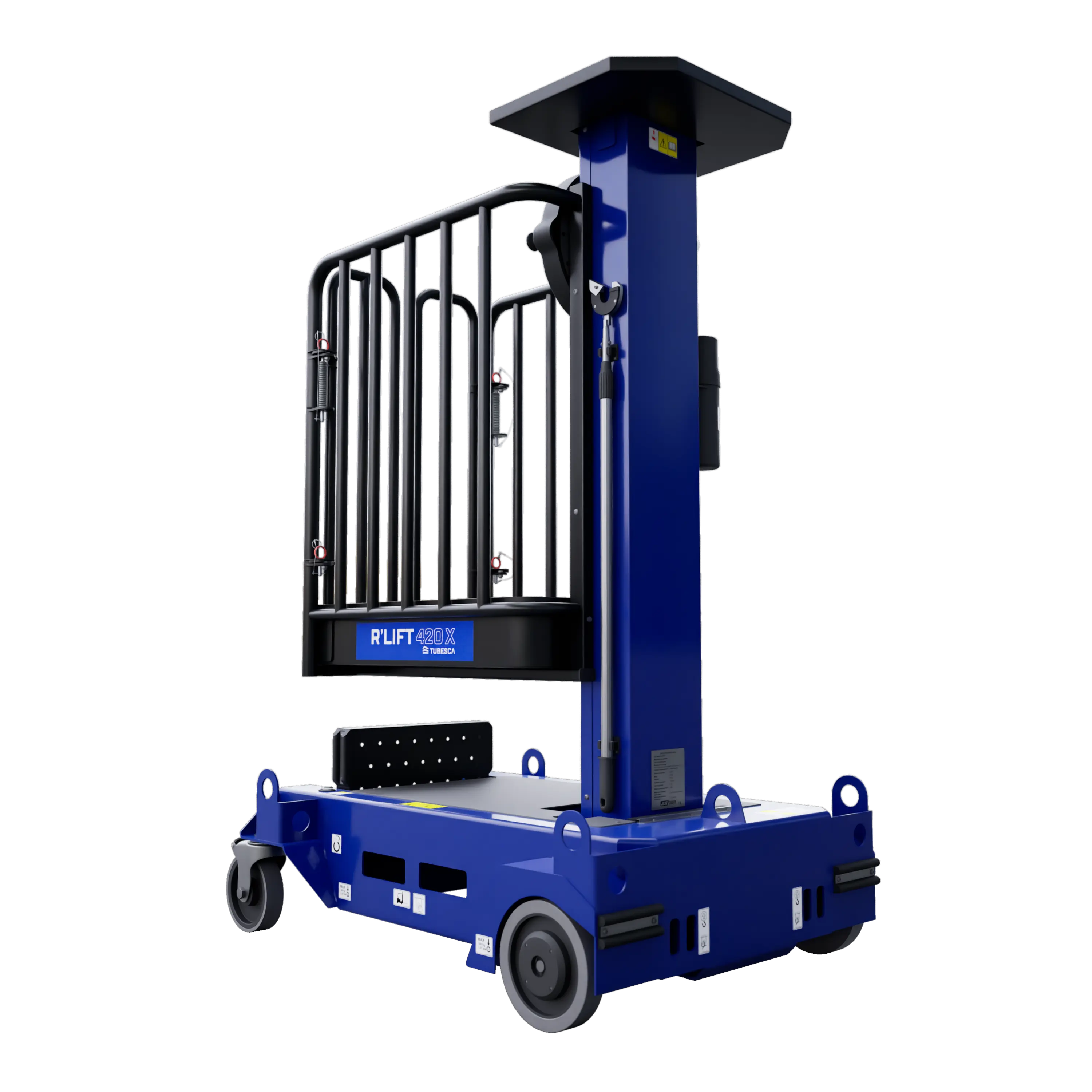

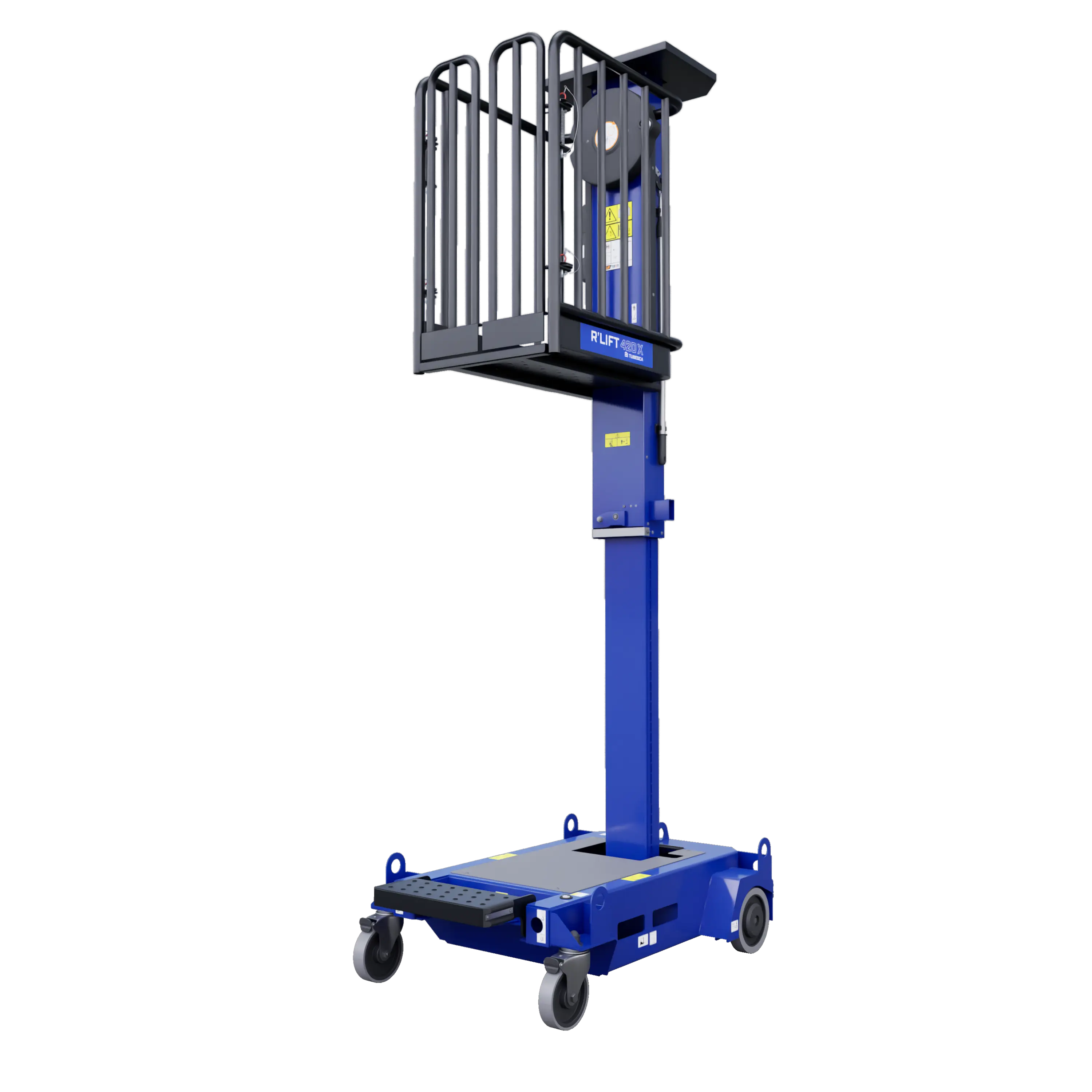

R'LIFT 420 X personal lift
Reference
05026003
Barcode
3178740263843
Brand
Tubesca
Standards
EN 280
Standard requirements
Machinery Directive 2006/42/EC - R486
Guarantee
2 year
Maximum working height
4,20 m
Maximum platform height
2,20 m
Main material
Steel
Overall width (without stab)
0,95 m
Weight
382 kg
Maximum load
150 kg
Type of floor
Flat surface
Details

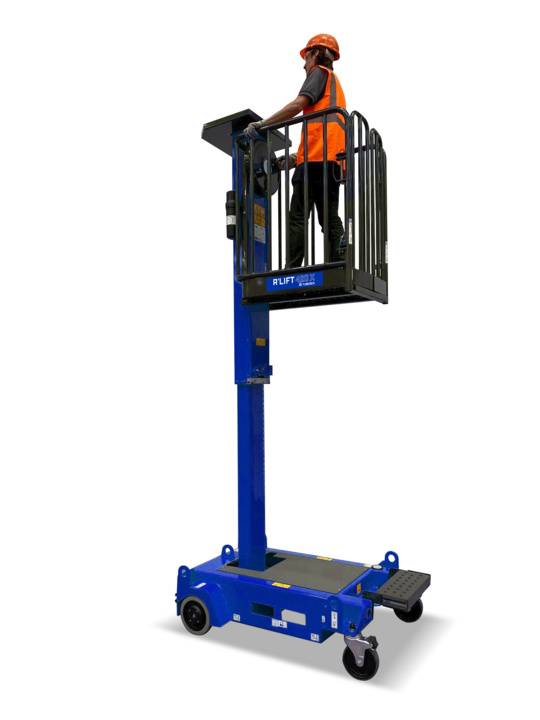

The R'LIFT X range provides a high level of ergonomics, productivity and safety. Providing safety from the ground and for use outdoors, the R'LIFT X is a workstation that is appreciated by users, factory managers, site mangers and QHSE managers.- Safety from the ground
- Steel guardrail with cage
- Ready to use, operates without power using a patented gas spring system
- Intuitive and effortless for maximum protection against ergonomic risks
- Means you are always working at the right height
- Easy to move around on site
- 0.85 x 0.64 m platform
- 200 mm front wheels with brake and 250 mm rear wheels
- Steering ratio: maximum elevation in a few rotations
- Designed for outdoor use
- Craneable and moveable by forklift / pallet truck
- Allows a tilt of 3° (<5.3%) during use, refer to the integrated spirit level

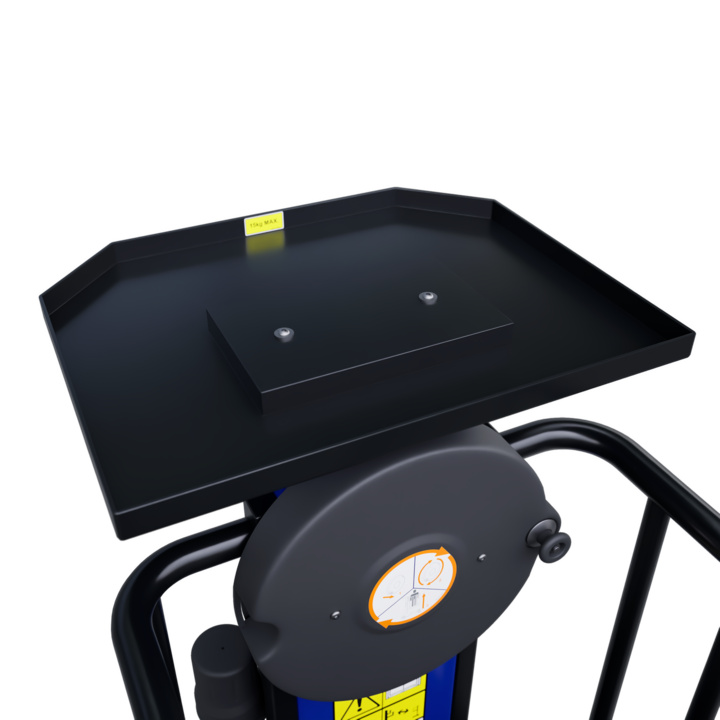

Integrated tool tray

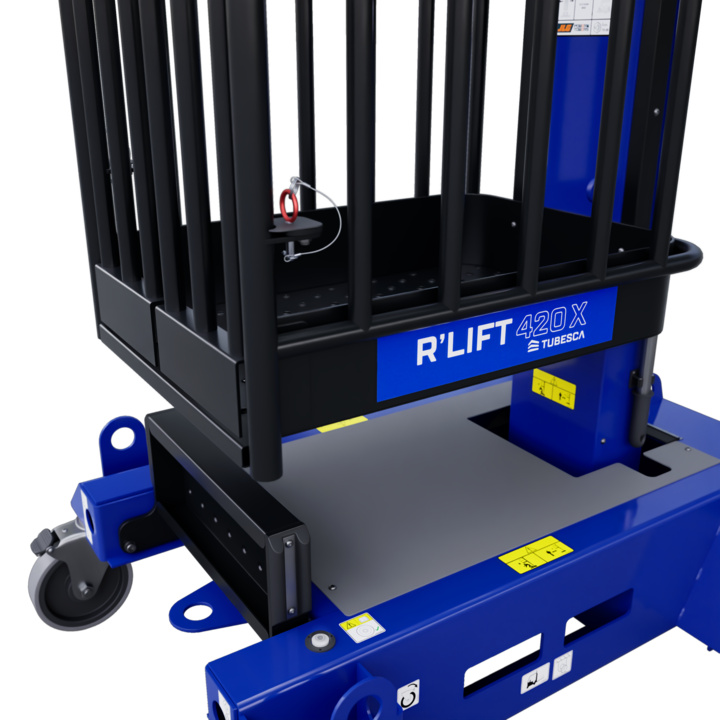

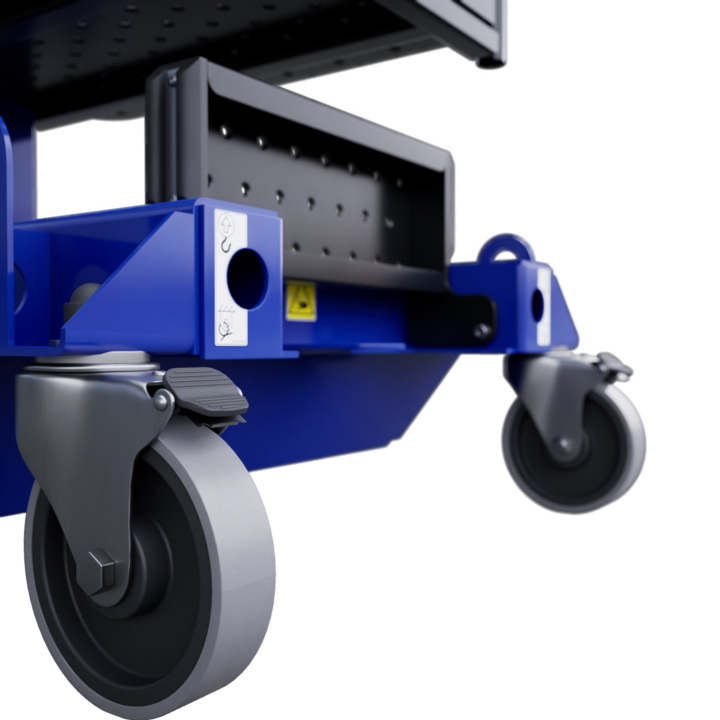

Folding access step

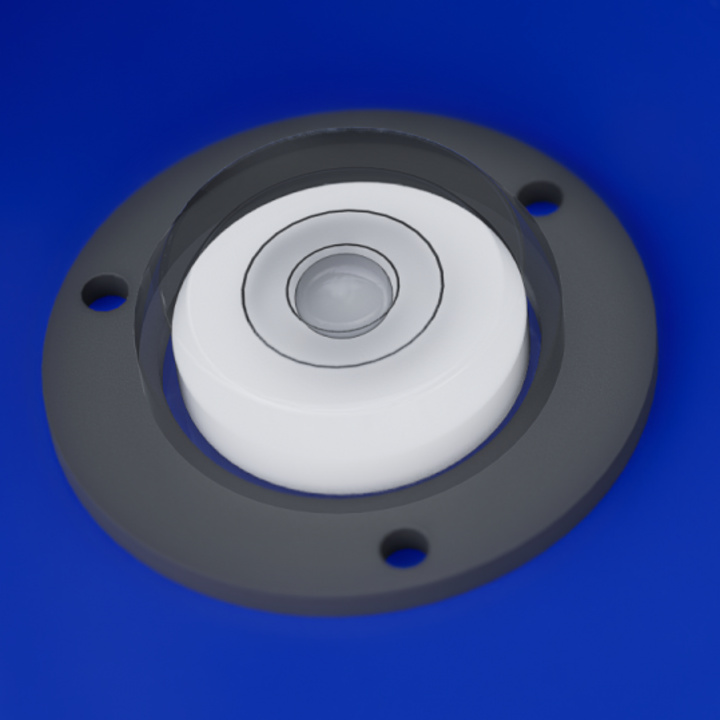

Integrated spirit level with markings

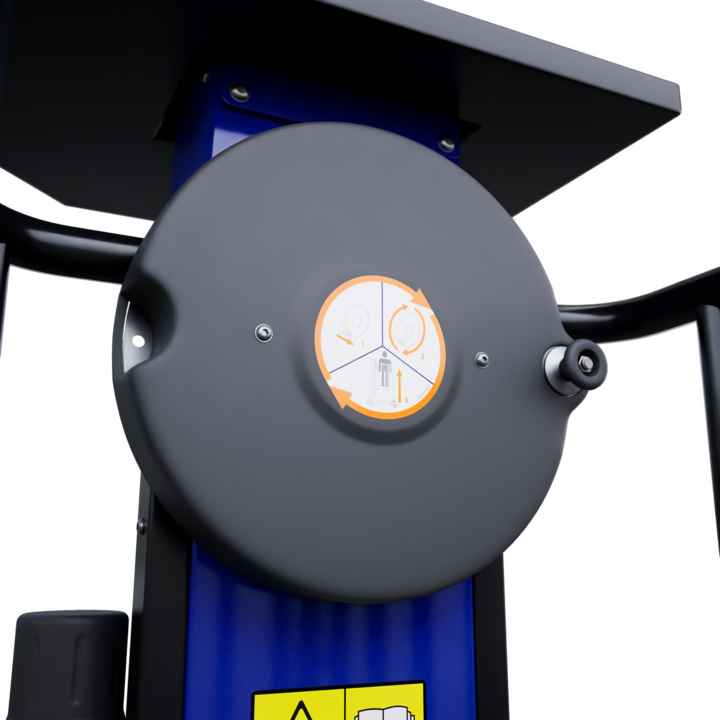

Steering wheel for assisted manual lifting

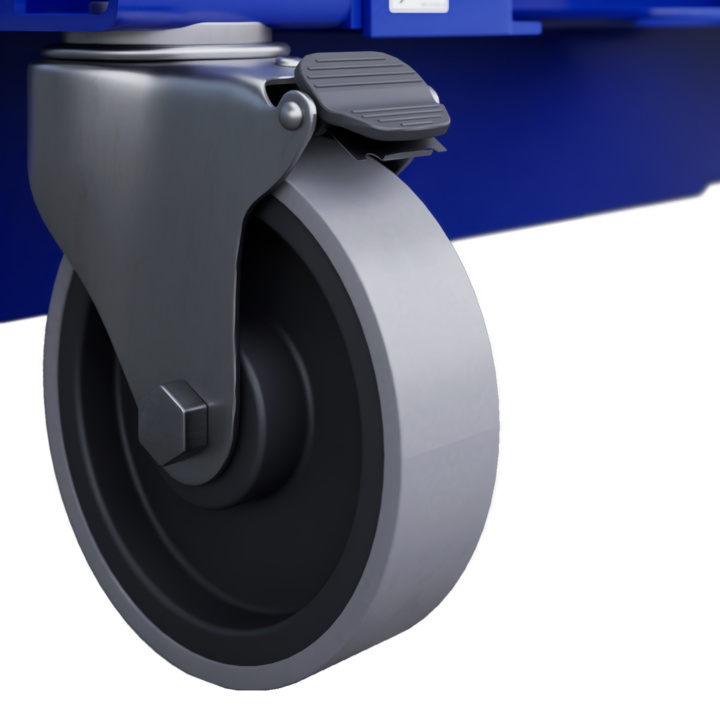

Front wheels with brake

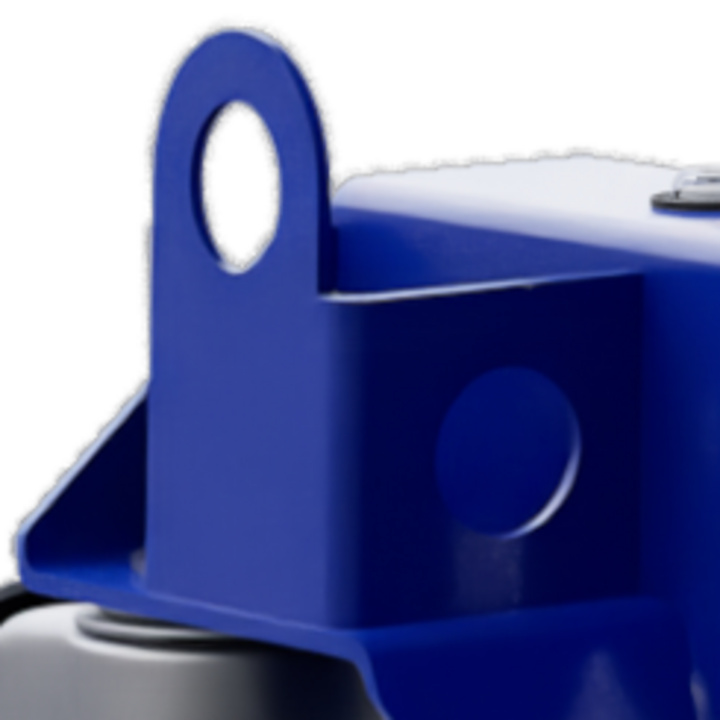

Integrated lifting rings

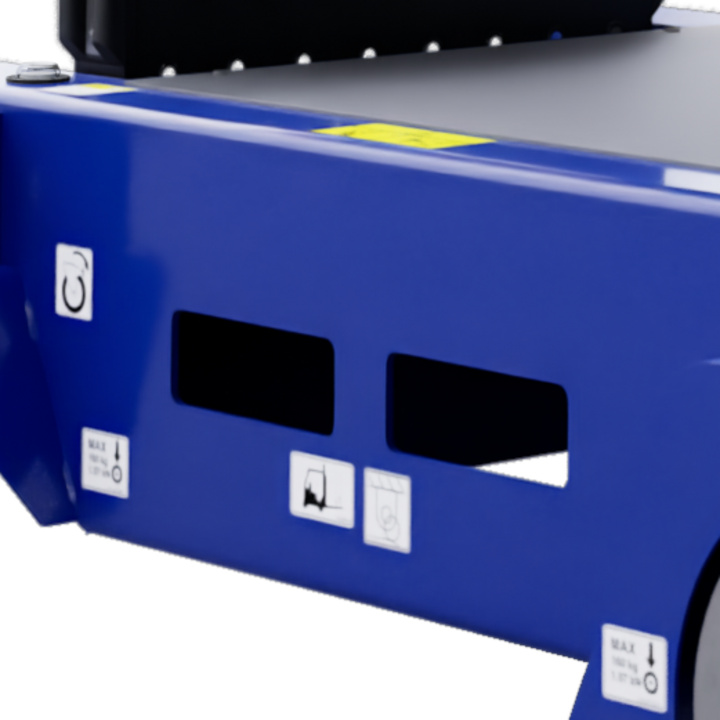

Transportable with a forklift/pallet truck
Download the documentation
Watch the video

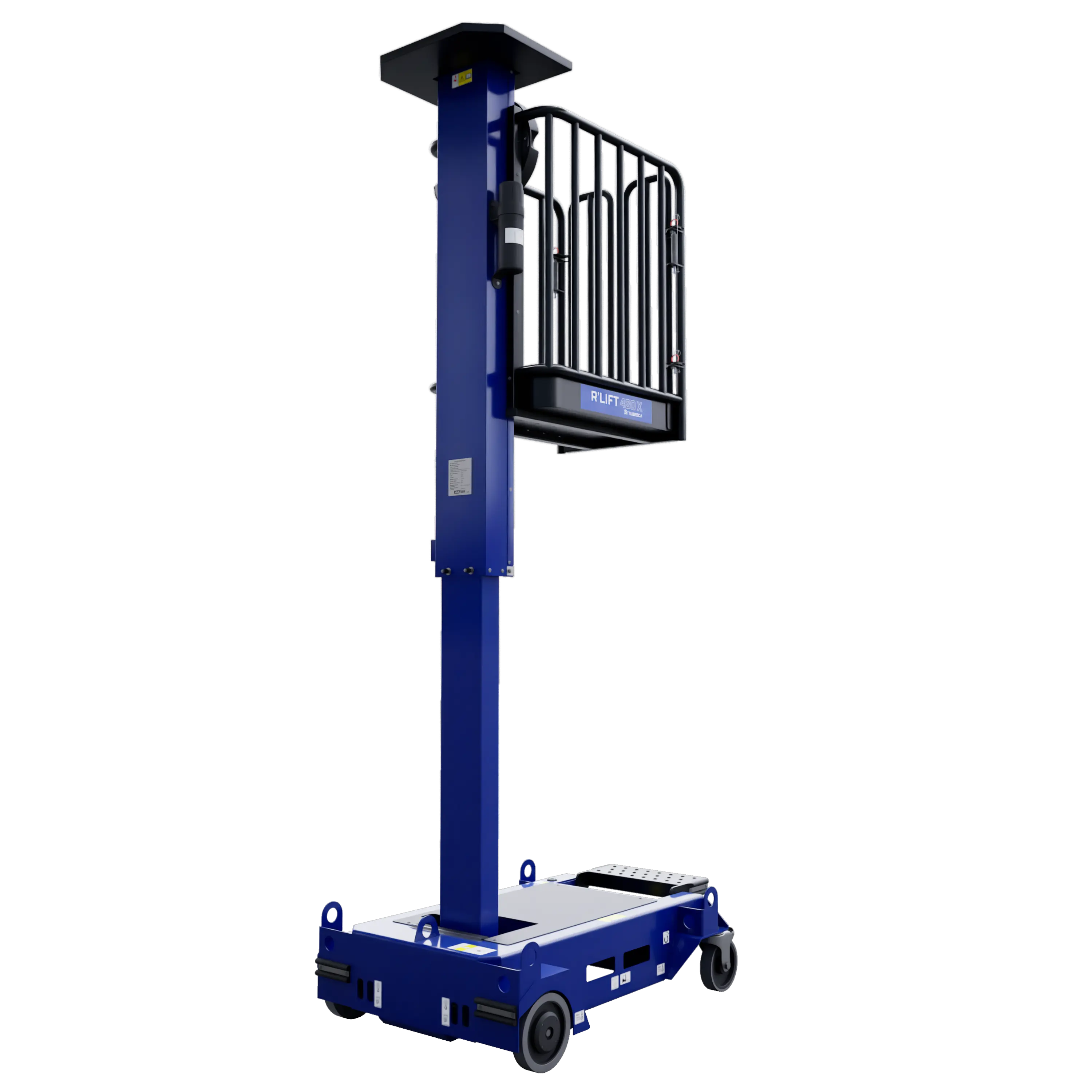

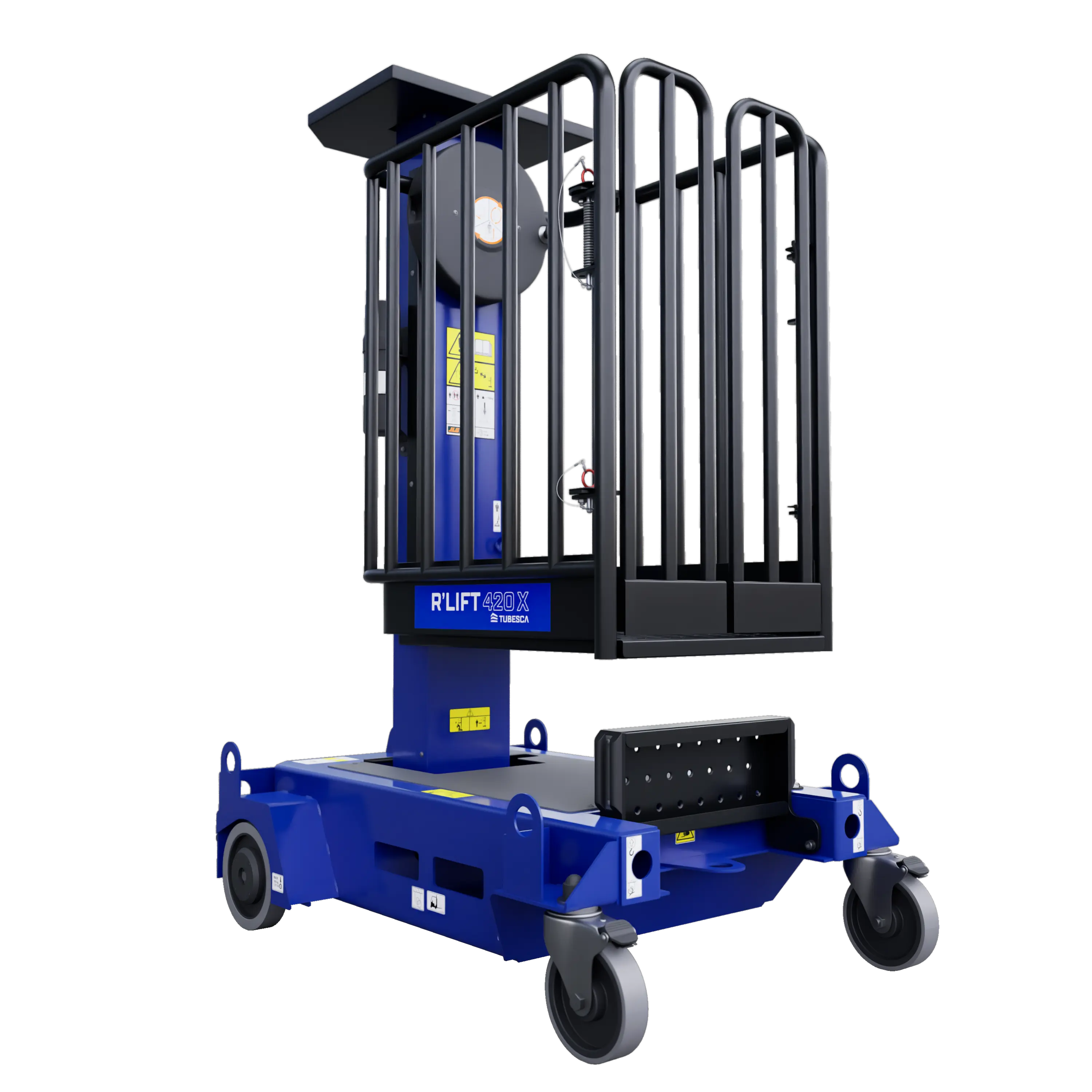

R'LIFT 420 X personal lift
Price on request
