Model specifications
Maximum access height:8,25 m
Medium designation (80)

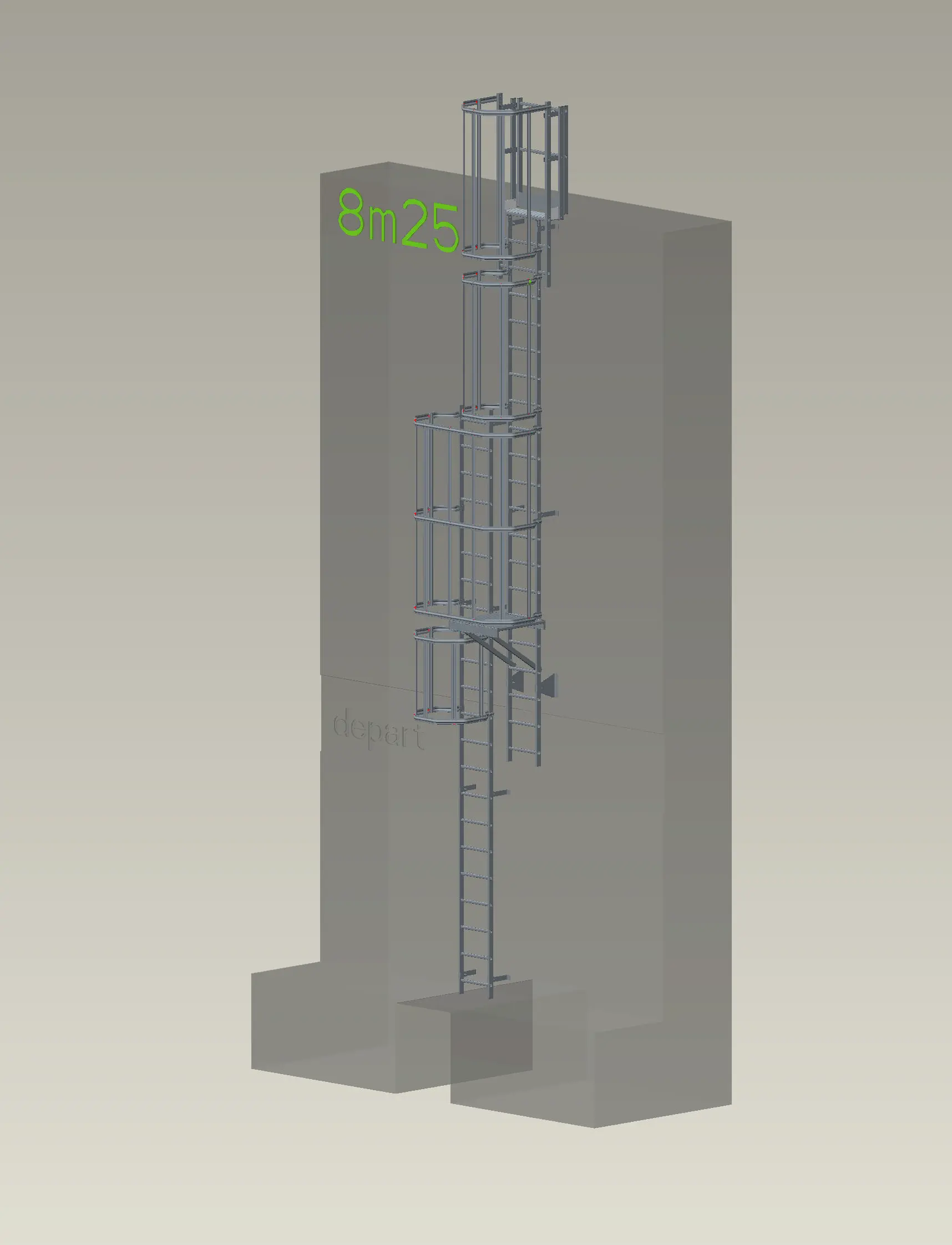

Escape ladder 8.25 m
Reference
09105582
Barcode
3178740120566
Brand
Tubesca
Standards
EN 1090, EN ISO 14122, NF E 85016
Decree
2004-924
Guarantee
5 year
Maximum access height
8.25 m
Main material
Aluminium
Weight
49.50 kg
Maximum load
150 kg
Made in france
Made in France
Details
Our escape ladders adapt to any type of structure and all configurations. Their unique design and pre-assembled delivery (on request) make them quick and easy to install.Standard packs ready for installation.
Kit contents 100% compliant with standard NFE 85-016 (including landing step and gate).
Fasteners suitable for concrete walls. Prices for sets calculated based on a front exit.
Before placing an order, it is essential to know:
- The total height required
- Wall thickness
- Drop height
- The wall material
- Height of intermediate access points
- The exit method
- Standard modules designed for easy assembly.
100% aluminium omega profiles
Download documentation
Configuration parts
Choose your option
Configuration name
Escape ladder 8.25 m
Price on request
